PLEASE EVERYONE, STAND UP AND WELCOME THE NEAT.

A new beginning. A new era of ebikes. Born and bred with all of our character, identity and feeling. A Mondraker by definition, but more manoeuverable, nimble and even faster than ever before. A new cycle with a new leader.

PLEASE EVERYONE, STAND UP AND WELCOME THE NEAT.

A new beginning. A new era of ebikes. Born and bred with all of our character, identity and feeling. A Mondraker by definition, but more manoeuverable, nimble and even faster than ever before. A new cycle with a new leader.

Mondraker

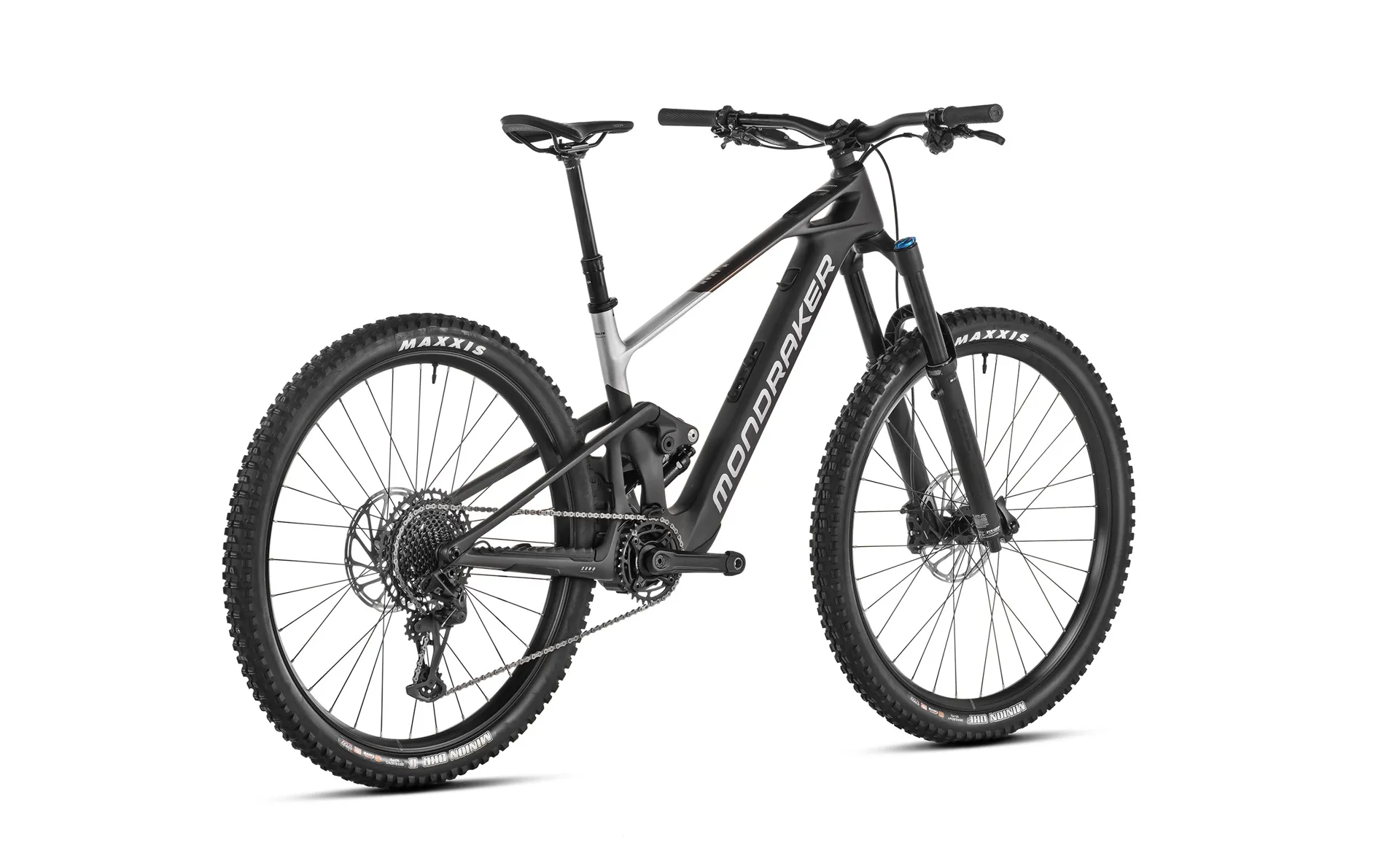

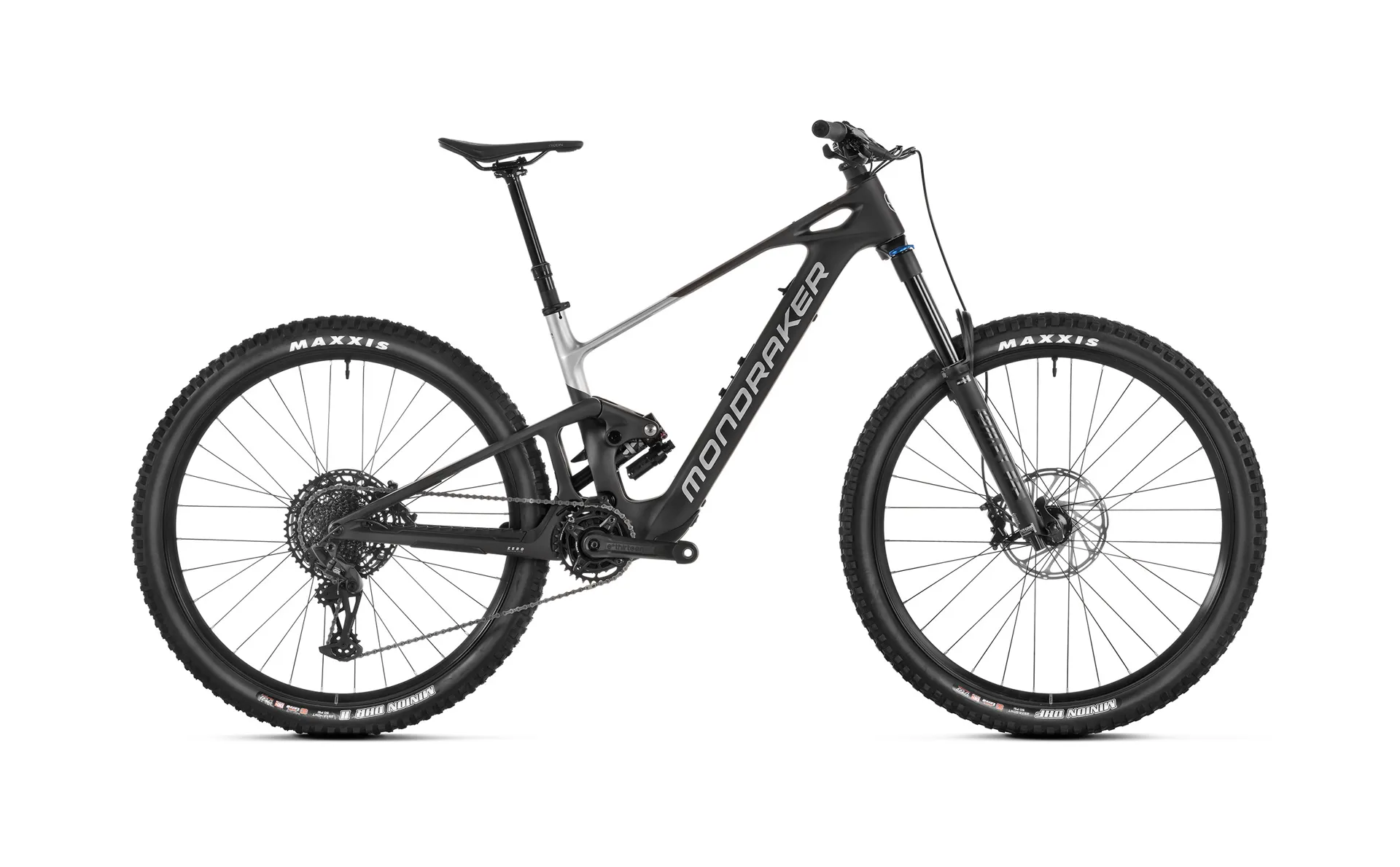

Mondraker Neat R Carbon Electric Mountain Bike in Black

€7,999.00
I'm a Pre-launch Product. Find out more
Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Mondraker Neat R Carbon Electric Mountain Bike in Black

Season:2024

Brand:Mondraker

Code:Mondraker Neat R

NEAT R

The first model in the line-up is the NEAT R, with a Fox 36 29 Float GRIP EVOL Performance fork, SRAM GX Eagle transmission, SRAM G2 R brakes, ONOFF Pija seatpost of up to 200mm travel (depending on size) and Mavic E-Crossride 29 wheels.

BEST OF BOTH WORLDS

Mondraker has managed to merge the best of both worlds by blending our two category leading bikes: the EnduroFOXY CARBONand e-MTB EnduroCRAFTY CARBON. 2024 then, sees the arrival of NEAT. A model with unmistakable aesthetics, characteristics and identitywhich sets a benchmark in this new category.

DEFINING OUR LIGHT E-MTB

NEAT is our vision of what the Light e-MTB category should be, while bringing the character which defines all Mondraker bikes into the mix.

NEAT is the product of our desire to blur the line between traditional MTBs and full power eMTBs, creating a bike whichtruly offers the best of both worlds. A 150mm enduro bike with a 160mm fork, the lower limit travel for maximum performance. Light, butwithout sacrificing anything in the process.

LIGHT WEIGHT WITHOUT COMPROMISE

NEAT is the expression of anew design concept. The layout is more angular, cleaner, especially around the headtube. This area, where the headtube joins both the top tube and the down tube,defines the identity of all Mondrakers, and expresses from this model on a new look for the brand.

The defining lightness of the frame (only 2300 grams) together with the redesigned swingarm which is lighter and more compact, make NEATthe lightest ever MTB ebike in the history of Mondraker, weighing in at under 18kg for the RR SL build.

Technical Information
  • frame

    Frame

    Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, integrated dropout speed sensor, exclusive plastic motor covers.

    sizes

    Sizes

    S: 380mm / M: 420mm / L: 450mm / XL: 490mm

  • rear shock

    Rear shock

    Fox Float X Performance EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

    shock settings

    Shock settings

    Medium compression, medium rebound, air volume spacer 0.4

  • fork

    Fork

    Fox 36 29 Float GRIP EVOL Performance, 160mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload

    headset

    Headset

    Acros custom for 1-1/2" head tube, angular contact bearings40x52x7, Internal cable routing

  • stem

    Stem

    Onoff Krypton FG 30mm, CNC, 31.8mm barbore

    handlebar

    Handlebar

    Onoff Krypton 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

  • grips

    Grips

    Onoff Desert, 1lock-on, 135mm

    seatpost

    Seatpost

    Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm

  • saddle

    Saddle

    Fizik Terra Aidon Slim X5

    front brake

    Front brake

    Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

  • rear brake

    Rear brake

    Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

    brake lever

    Brake lever

    Sram G2 R, tool-free reach adjust, lever pivot bushings

  • rims

    Rims

    Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes

    spokes

    Spokes

    Mavic J-bend double butted, contactless lacing

  • front hub

    Front hub

    Mavic, Boost 15x110mm, IS 6 bolts

    rear hub

    Rear hub

    Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub

  • front tire

    Front tire

    Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

    rear tire

    Rear tire

    Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

  • crankset

    Crankset

    E.13 E*Spec Plus,, S size: 165mm M size: 165mm L size: 170mm XL size: 170mm

    rings

    Rings

    Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD

  • chain

    Chain

    Sram NX Eagle, 12s, Powerlock

    rear derrailleur

    Rear derrailleur

    Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

  • shift levers

    Shift levers

    Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click

    casette

    Casette

    Sram PG-1230, 11-50T, 12s

  • derailleur hanger

    Derailleur hanger

    Sram UDH

    others

    Others

    Mondraker custom desing Fidlock smoked transparent 600ml bottle + Fidlock base down version *Optional external battery: TQ 160Wh

  • weight

    Weight

    18.9 kg - Max System Weight 150kg.

    display

    Display

    TQ HPR display V01

  • motor

    Motor

    TQ HPR-50

    battery

    Battery

    TQ HPR-50 360Wh integrated and removable

Sizing Information
FRAME SIZESMLXL
ASeattube length380mm420mm450mm490mm
BToptube length595mm615mm640mm660mm
CBottom bracket drop-25mm-25mm-25mm-25mm
DBottom bracket height348mm348mm348mm348mm
EChainstay length450mm450mm450mm450mm
FSeat tube angle72,6º72,6º72,6º72,6º
GEffective seattube angle76.5°76.5°76.5°76.5°
HHeadtube angle64.5º64.5º64.5º64.5º
IFork Offset44mm44mm44mm44mm
JWheelbase1235mm1255mm1275mm1295mm
KHeadtube length110mm110mm130mm140mm
LReach450mm470mm495mm515mm
MStack626mm626mm642mm650 mm
