LIMITED EDITION: FROM 1 TO 50
TheNEAT Unlimited Gulf Editionwill be limited to a production run of just 50 worldwide. Each and every one individually numbered, complete with a presentation box containing a certificate of authenticity, colour-matched touch-up pens, a poster and a mesmerizing booklet which encompasses the passion of both brands,the heritage of Gulf motorsport and the livery which is now carried by this Mondraker NEAT.
LIMITED EDITION: FROM 1 TO 50
TheNEAT Unlimited Gulf Editionwill be limited to a production run of just 50 worldwide. Each and every one individually numbered, complete with a presentation box containing a certificate of authenticity, colour-matched touch-up pens, a poster and a mesmerizing booklet which encompasses the passion of both brands,the heritage of Gulf motorsport and the livery which is now carried by this Mondraker NEAT.
Mondraker

NEAT UNLIMITED GULF EDITION No 30 OF 50

€13,999.99
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

NEAT UNLIMITED GULF EDITION No 30 OF 50

Season:2024

Brand:Mondraker

Code:Neat Gulf

TWO WORLDS COLLIDE

Fast forward to the present day, where the Mondraker NEAT emerges as a modern marvel, blending cutting-edge technology with the spirit of adventure. Its electric heart pulses with energy as riders venture into the wild, navigating rugged trails with the precision of a virtuoso and the soul of a wanderer.

Two worlds collide, bridging the gap between tradition and innovation, past and future. Whether you’re drawn to the adrenaline-fueled excitement of the racetrack or the rush found in the mountain trails, there’s a common thread that binds us all: the pursuit of passion and the thrill of the journey.

Gulf & Mondraker Bikes

Fast forward to the present day, where the Mondraker NEAT emerges as a modern marvel, blending cutting-edge technology with the spirit of adventure. Its electric heart pulses with energy as riders venture into the wild, navigating rugged trails with the precision of a virtuoso and the soul of a wanderer.

Range-topping bike

Based on the range-topping RR SL, theNEAT Unlimited Gulf Editionhas a couple of things which make it even more exclusive. Its Fox 36 29 Float GRIP X2 Factory Kashima fork has been fitted with the all-new2025 Grip X2 cartridge,and we’ve upgraded the brakes toSRAM Code Ultimate Stealthso you can leave your braking until later than ever before.

THE CRAFTWORK OF A HAND-PAINTED FRAME

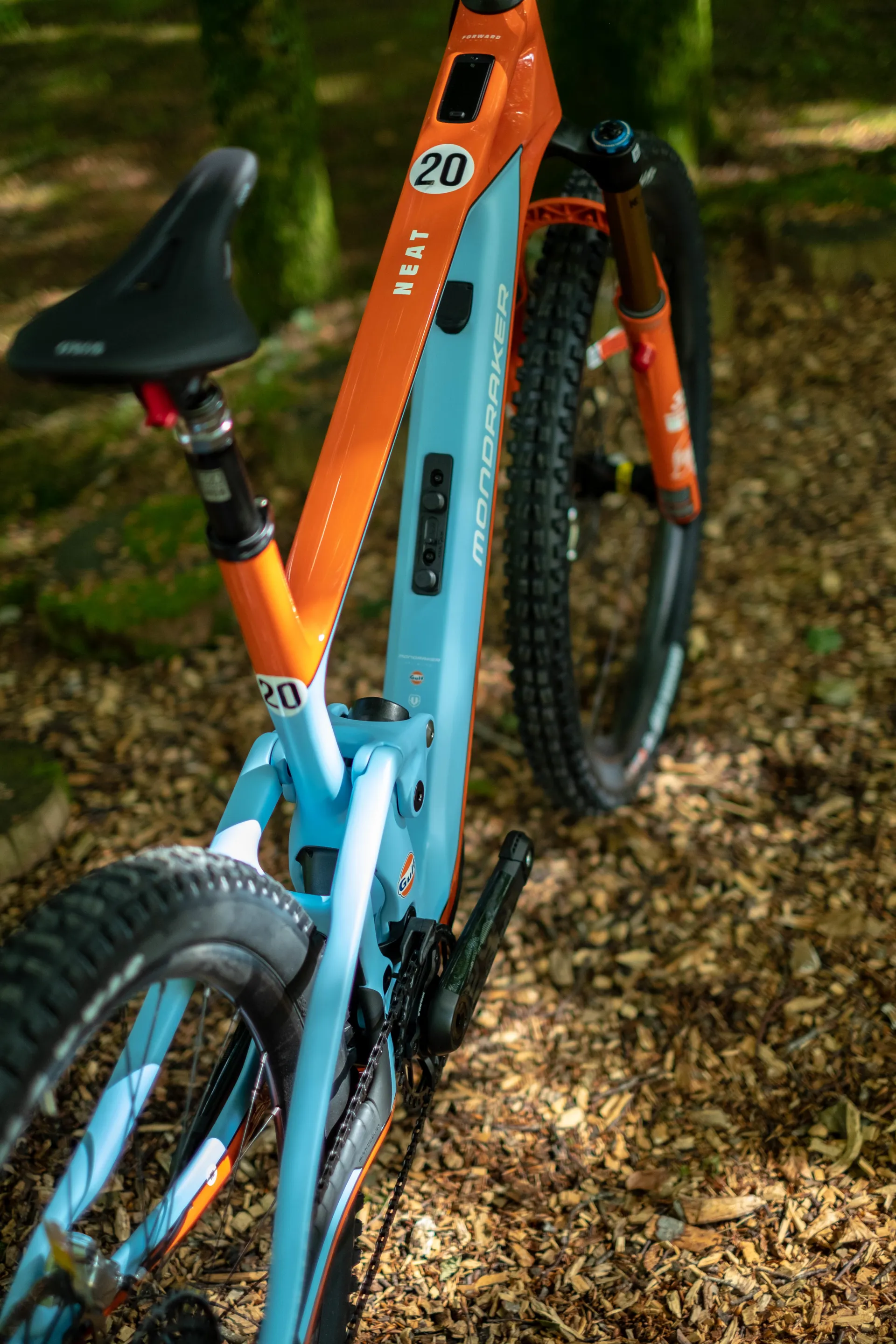

One by one. The same care, the same painstaking attention to detail.Here at Mondraker we know how to make limited-edition bikes with added value.Each of the 50NEAT Unlimited Gulf Editionhas been 100% hand-painted, individually, by specialist bike painters,lovingly integrating the spirit of the Gulf racing livery into the frame of the NEAT.The gloss of the orange, contrasting perfectly with the matte light blue together with the detail of the number 20 painted on the top-tube. All paying homage to the 3 Porshe 917Ks still in existence, the 917s which ate up so many kilometres in endurance races such as the legendary “Le Mans”.

Technical Information

TECHNICAL SPECS

  • frame

    Frame

    Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, integrated dropout speed sensor, exclusive plastic motor covers.

    sizes

    Sizes

    S: 380mm / M: 420mm / L: 450mm / XL: 490mm

  • rear shock

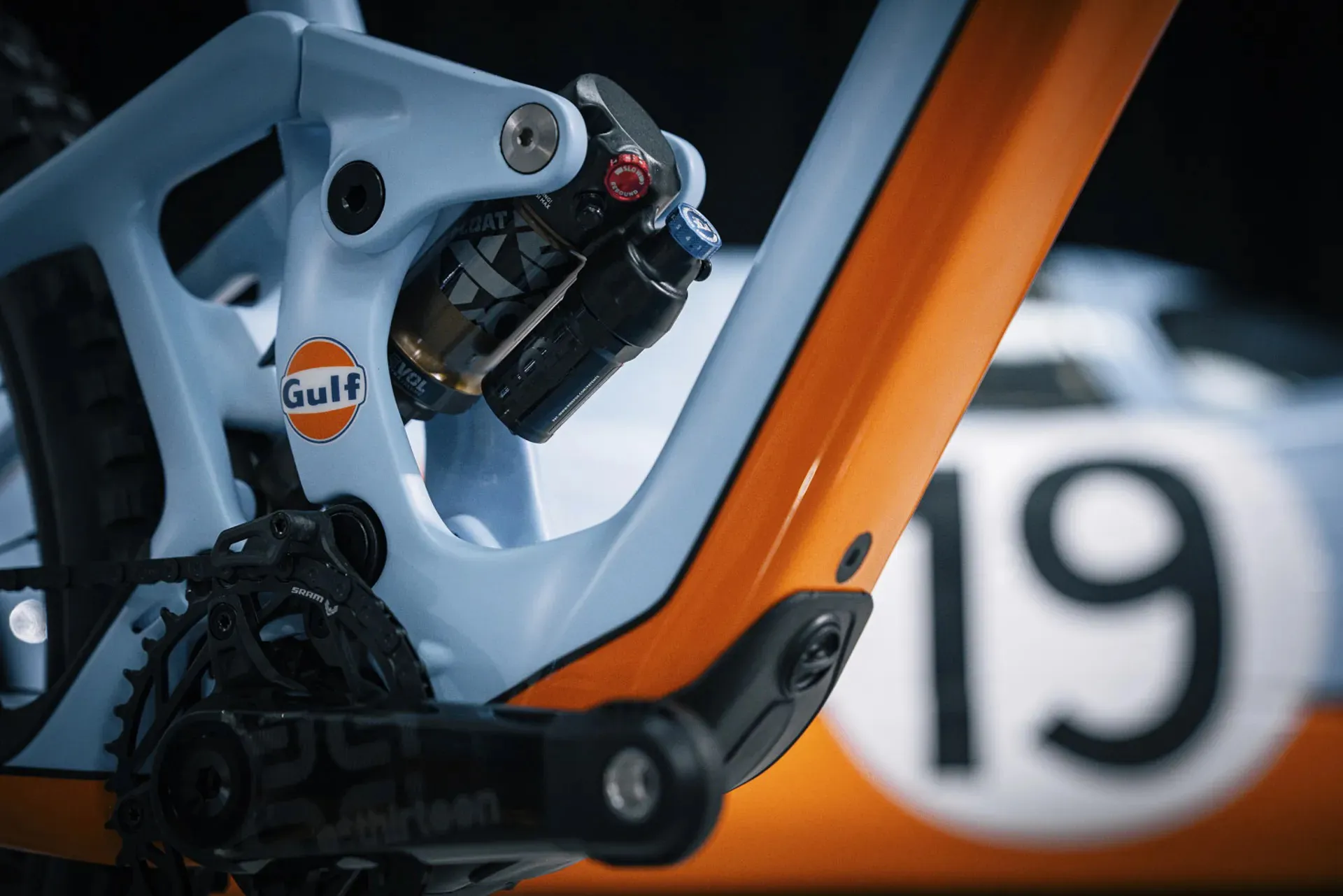

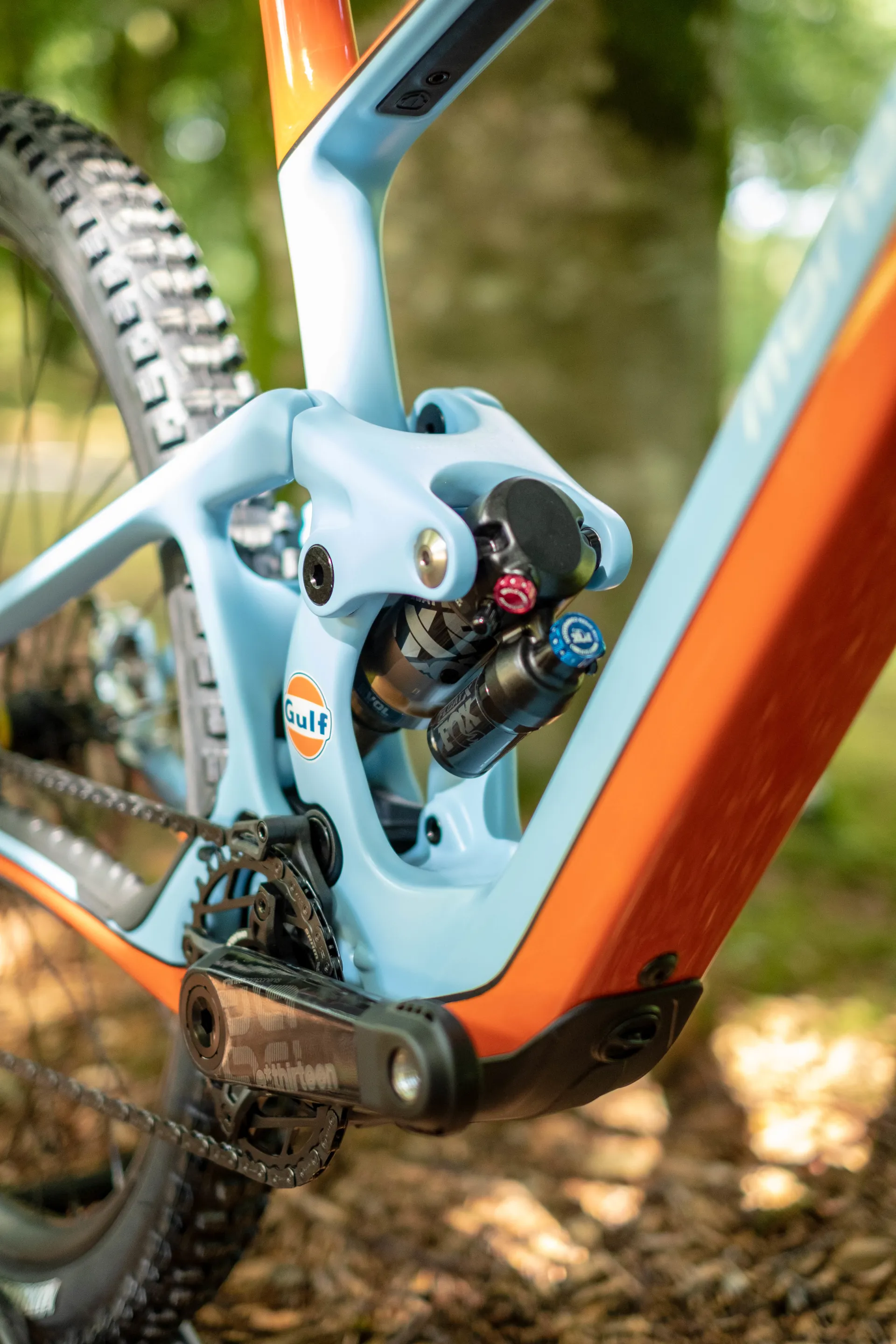

    Rear shock

    Fox Float X Factory Kashima EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

    shock settings

    Shock settings

    Medium compression, medium rebound, air volume spacer 0.4

  • fork

    Fork

    Fox 36 29 Float GRIP X2 Factory Kashima, Gloss Orange, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload

    headset

    Headset

    Acros custom for 1-1/2" head tube, angular contact bearings40x52x7, Internal cable routing

  • stem

    Stem

    Onoff Krypton FG 30mm, CNC, 31.8mm barbore

    handlebar

    Handlebar

    Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

  • grips

    Grips

    Onoff Desert, 1lock-on, 135mm

    seatpost

    Seatpost

    RockShox Reverb Stealth AXS, diameter 31.6mm S size: 340x125mm M size: 390x150mm L size: 440x170mm XL size: 440x170mm

  • saddle

    Saddle

    Fizik Terra Aidon Slim X5

    front brake

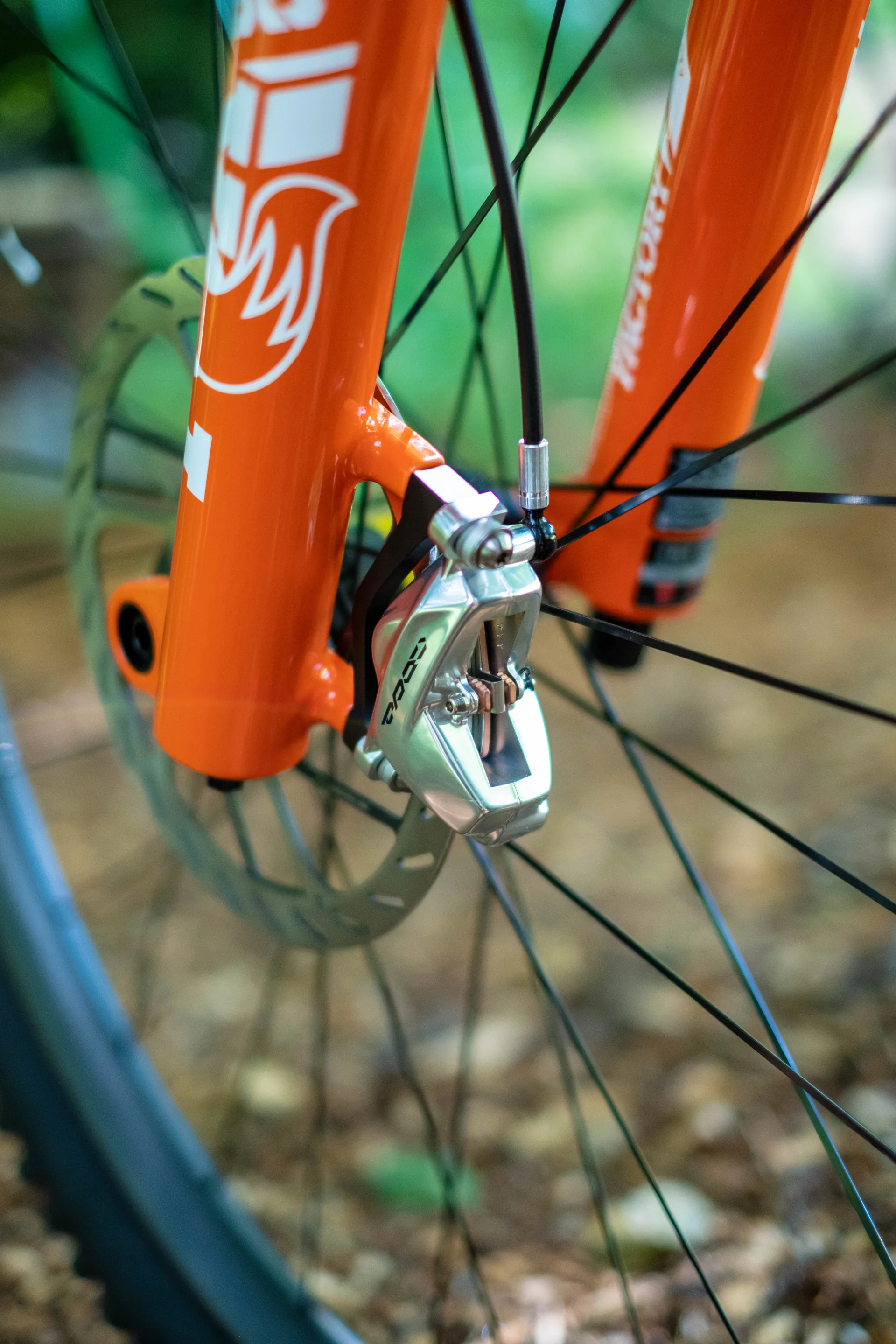

    Front brake

    Sram Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

  • rear brake

    Rear brake

    Sram Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

    brake lever

    Brake lever

    Sram Code Ultimate, SwingLink and lever pivot bearings, tools-free reach adjust

  • rims

    Rims

    Mavic E-CrossMax Carbon XL R, 29 Boost 30mm internal width, hookless, tubeless ready, 28 spokes

    spokes

    Spokes

    Mavic 28 straight-pull double butted spokes

  • front hub

    Front hub

    Mavic Infinity hub, Boost 15x110mm, IS 6 bolts

    rear hub

    Rear hub

    Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts XD freehub

  • front tire

    Front tire

    Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

    rear tire

    Rear tire

    Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

  • crankset

    Crankset

    E.13 TRS Race carbon ebike, S size: 165mm M size: 165mm L size: 170mm XL size: 170mm

    rings

    Rings

    Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD

  • chain

    Chain

    Sram X0 Eagle T-Type, 12s, Powerlock

    rear derrailleur

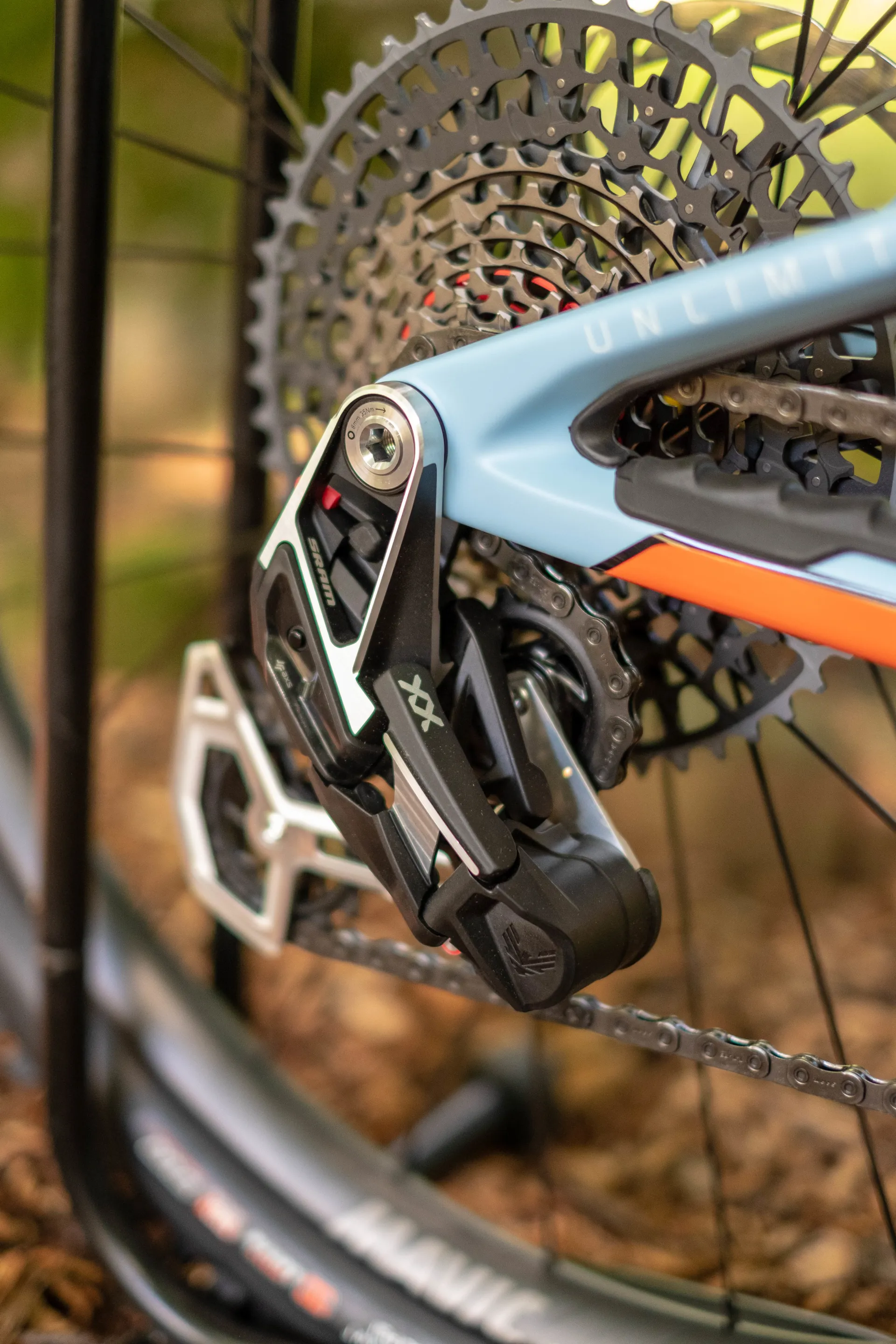

    Rear derrailleur

    Sram XX Eagle AXS, T-Type roller bearing clutch, cage lock, long carbon cage, 1x12s

  • shift levers

    Shift levers

    Sram Eagle AXS Pod MMX, 12s

    casette

    Casette

    Sram XG-1295, 10-52T, T-Type, 12s

  • others

    Others

    Mondraker custom desing Fidlock smoked transparent 600ml bottle + Fidlock base down version *Optional external battery: TQ 160Wh

    weight

    Weight

    17.9 kg - Max System Weight 150kg

  • display

    Display

    TQ HPR display V01

    motor

    Motor

    TQ HPR-50

  • battery

    Battery

    TQ HPR-50 360Wh integrated and removable

Sizing Information


FRAME SIZE
SMLXL
ASeattube length380mm420mm450mm490mm
BToptube length595mm615mm640mm660mm
CBottom bracket drop-25mm-25mm-25mm-25mm
DBottom bracket height348mm348mm348mm348mm
EChainstay length450mm450mm450mm450mm
FSeat tube angle72.6º72.6º72.6º72.6º
GEffective seattube angle76.5°76.5°76.5°76.5°
HHeadtube angle64.5º64.5º64.5º64.5º
IFork Offset44mm44mm44mm44mm
JWheelbase1235mm1255mm1275mm1295mm
KHeadtube length110mm110mm130mm140mm
LReach450mm470mm495mm515mm
MStack626mm626mm642mm650 mm
