Mondraker

Mondraker Crusher 2024

€6,999.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

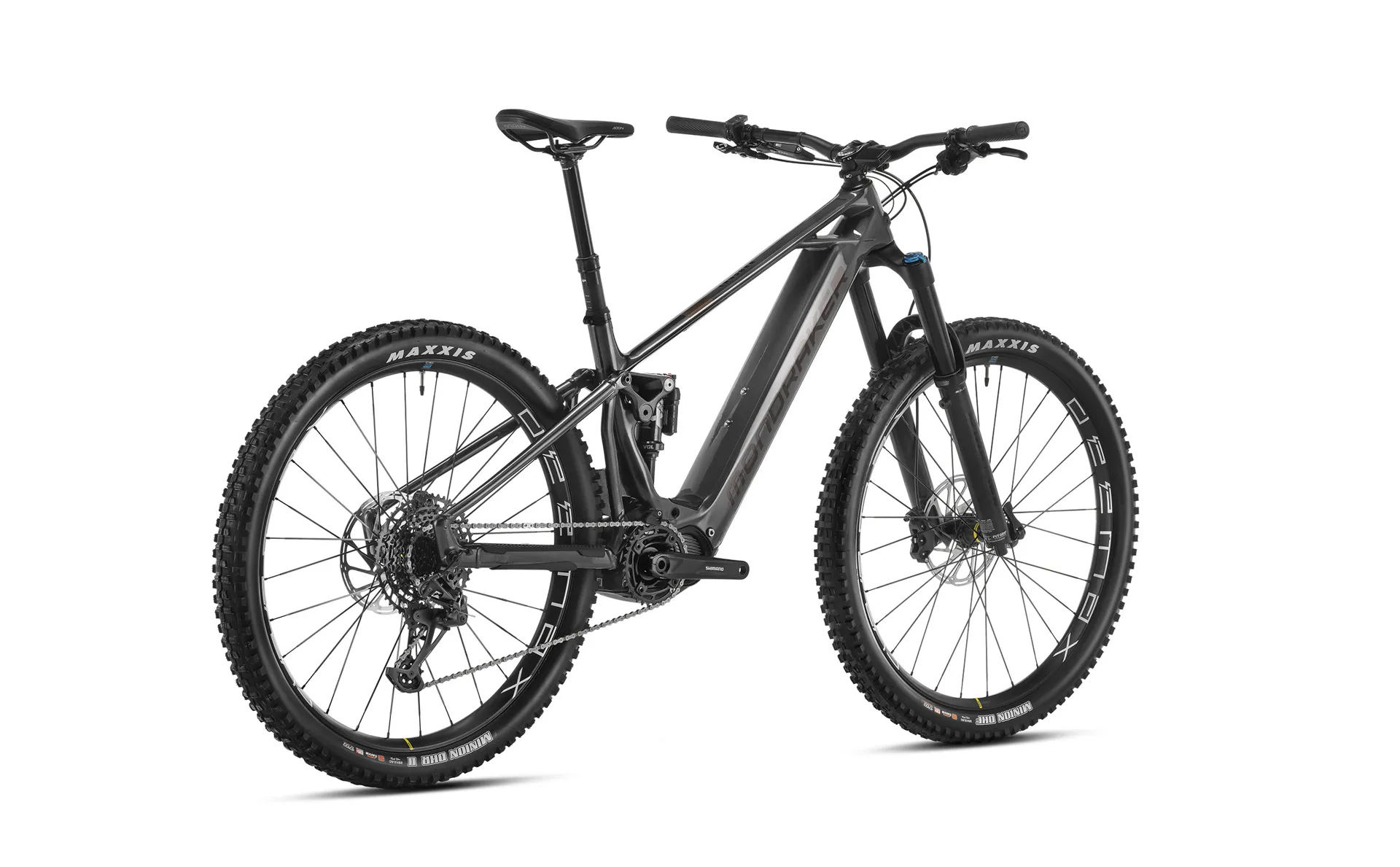

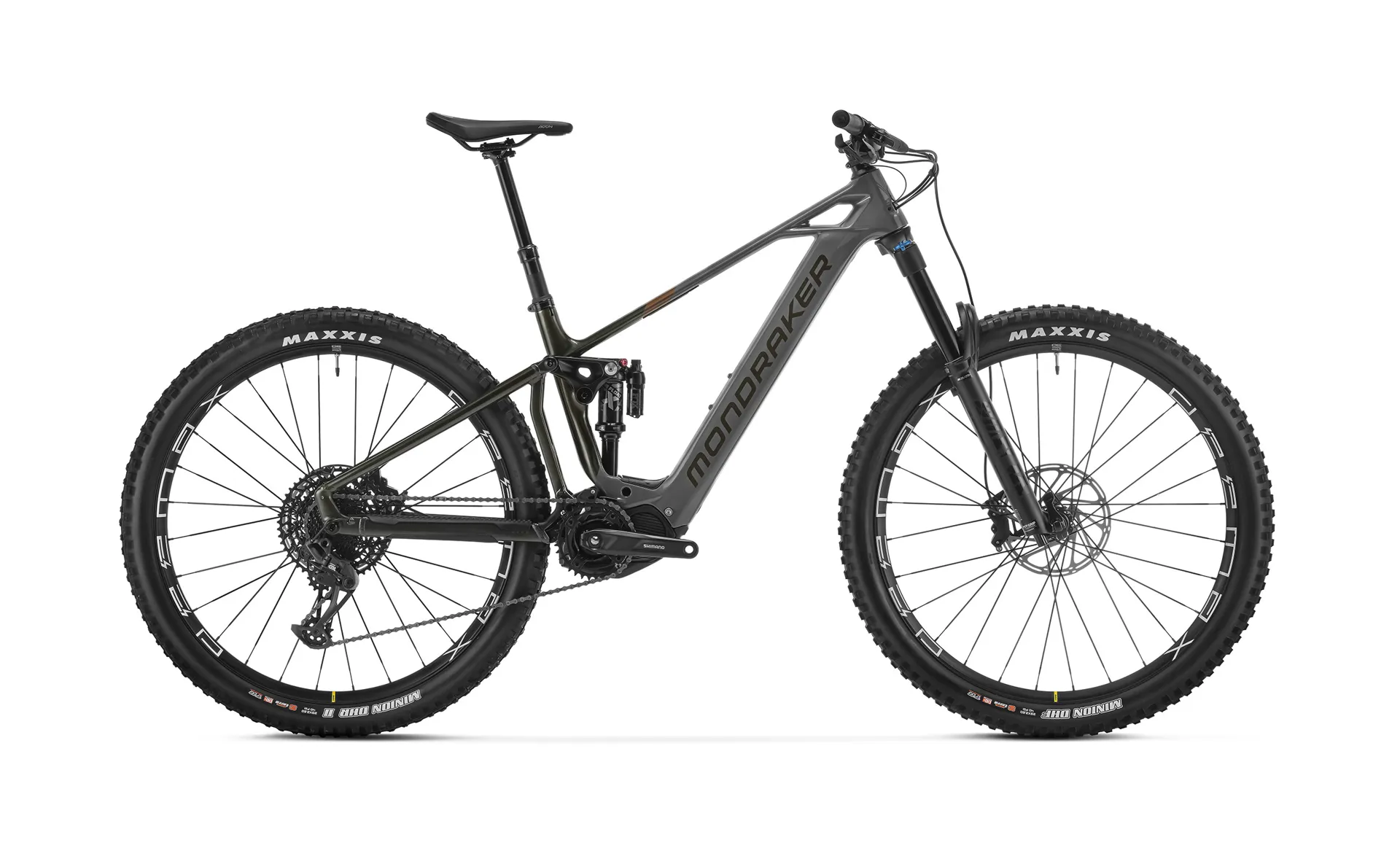

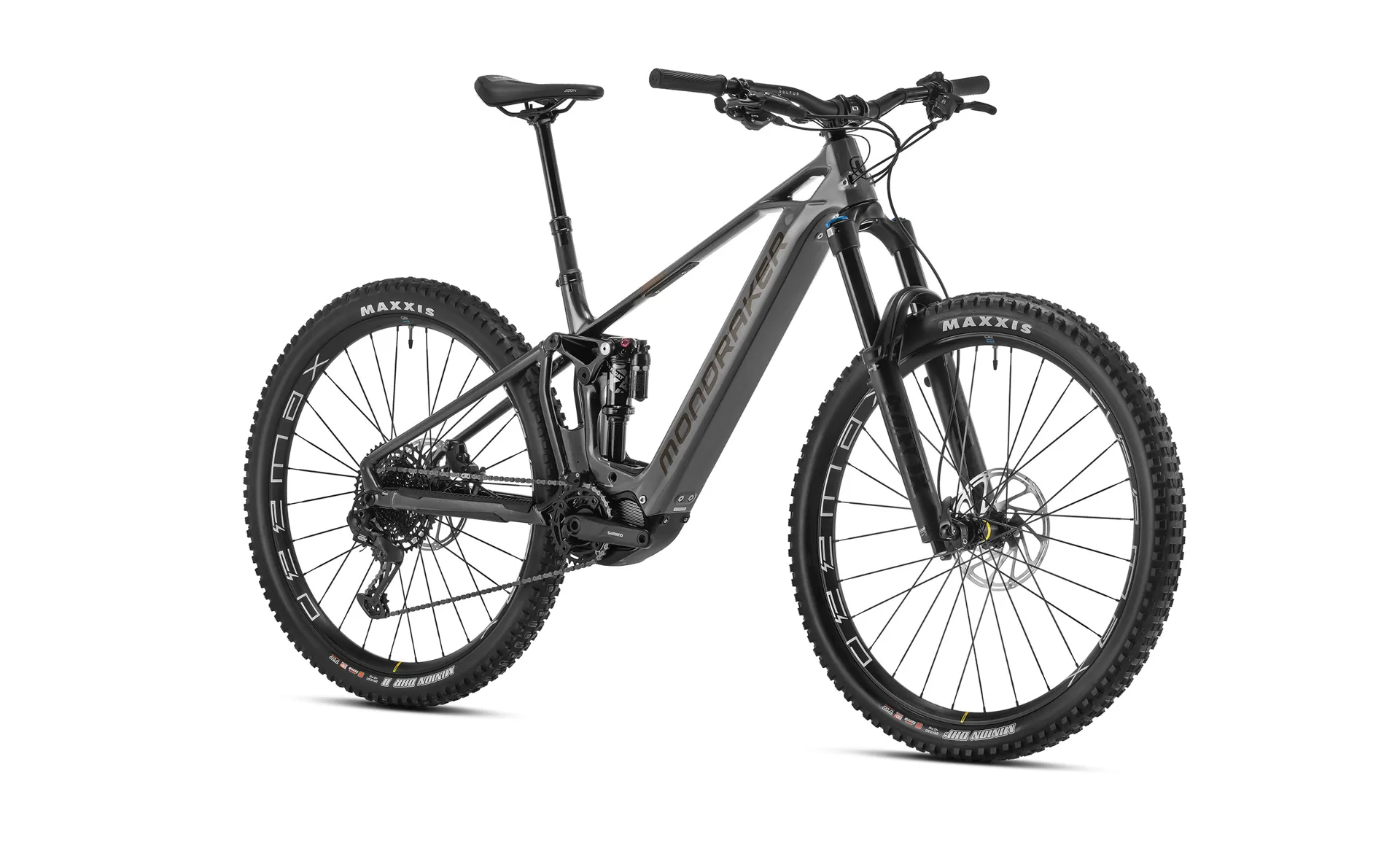

Mondraker Crusher 2024

Season:2024

Brand:Mondraker

Code:CRUSHER

STOP AT NOTHING

You’re one of those riders. Someone who’s willing to do what it takes. Especially if it involves adrenaline, effort and will power. That’s why we thinkyou’re going to love the new CRUSHER. Your type of enduro ebike, stylish, tough and capable of anything.

Introducing CRUSHER.

CRUSHER IS AIMED AT AGGRESSIVE ENDURO RIDING AND LONG DAYS IN THE SADDLE

The CRUSHER is an enduro bike with 29” wheels, 150mm of rear wheel travel complimented by a 160mm fork, Shimano’s EP801 motor and an integrated 720Wh battery. Featuring 2.6” tyres and forks with burly 38mm stanchions on all three builds.

CRUSHER RR: CHANGE GEAR WITHOUT PEDALLING

The top of the range build, theCRUSHER RRshowcases one of the most revolutionary technologies to come from Shimano in recent years:FREE SHIFT (only available on bikes with the EP801 and the XT Di2 rear mech).

Thanks toFREE SHIFFT you can change gears without pedalling, by which we mean the motor drives the chain (rotating the chainring) without you turning the cranks, thus allowing the appropriate gear to be selected even when, for whatever reason, you can’t turn the cranks because of the terrain. It’s perfect for the times you can’t pedal at a certain point on the trail (there’s a big rock to negotiate)but you know that you need to be in a different gearfor the next section of trail (a short sharp climb).

STEALTH AIR CARBON / STEALTH ALLOY.

ZERO SUSPENSION SYSTEM.

29-inch wheels.

160mm front, 150mm rear suspension travel.

Forward Geometry.

Shimano EP801 motor.

720wh internal battery.

2x bottle cage mounts.

Hidden housing guide.

Up to 2.6” tires.

Custom motor covers / Post Mount 200mm / Boost 12x148mm / Custom chain guide.

Technical Information

TECHNICAL SPECS

  • frame

    Frame

    Crusher Stealth Air Carbon front triangle, Stealth Alloy rear triangle, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, integrated internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.

    sizes

    Sizes

    S: 380mm / M: 420mm / L: 450mm / XL: 490mm

  • rear shock

    Rear shock

    Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25x10mm bottom bushings

    shock settings

    Shock settings

    C20 compression, R35 rebound. Volume reducers 12.000 (2xF+1D)

  • fork

    Fork

    Öhlins RXF 38 M.2 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber

    headset

    Headset

    AcrosAZF-601 R1 Block Lock 120°, ZS44/28.6 top, ZS56/40 bottom

  • stem

    Stem

    Onoff Krypton FG 30mm, CNC, 31.8mm barbore

    handlebar

    Handlebar

    Onoff Krypton 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

  • grips

    Grips

    Onoff Desert, 1lock-on, 135mm

    seatpost

    Seatpost

    Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm

  • saddle

    Saddle

    FIZIK Terra Aidon X5 145mm

    front brake

    Front brake

    Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

  • rear brake

    Rear brake

    Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

    brake lever

    Brake lever

    Sram Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust

  • rims

    Rims

    Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes

    spokes

    Spokes

    Mavic J-bend double butted, contactless lacing

  • front hub

    Front hub

    Mavic, Boost 15x110mm, IS 6 bolts

    rear hub

    Rear hub

    Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, XD freehub

  • front tire

    Front tire

    Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

    rear tire

    Rear tire

    Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

  • crankset

    Crankset

    Shimano Steps FC-EM600 ebike, 165mm

    rings

    Rings

    Sram X-Sync 2 Eagle 34T, alloy, narrow-wide, 104 BCD

  • chain

    Chain

    Sram NX Eagle, 12s, Powerlock

    rear derrailleur

    Rear derrailleur

    Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

  • shift levers

    Shift levers

    Sram Trigger GX Eagle, 12s, X-Actuation 1:1, single click

    casette

    Casette

    Sram XG-1275, 10-52T, 12s

  • derailleur hanger

    Derailleur hanger

    Mondraker M068

    weight

    Weight

    24,1 kg

  • display

    Display

    Shimano EN600

    motor

    Motor

    Shimano STEPS EP801

  • battery

    Battery

    Simplo internal 720Wh G3

Sizing Information


FRAME SIZESMLXL
ASeattube length380mm420mm450mm490mm
BToptube length605mm625mm650mm670mm
CBottom bracket drop25mm25mm25mm25mm
DBottom bracket height350mm350mm350mm350mm
EChainstay length455mm455 mm455 mm455 mm
FSeat tube angle73,5º73,5º73,5º73,5º
GEffective seattube angle76,0°76,0°76,0°76,0°
HHeadtube angle65º65º65º65º
IFork Offset44 mm44 mm44 mm44 mm
JWheelbase1236mm1256mm1285mm1305mm
KHeadtube length110mm110mm130 mm130 mm
LReach450mm470mm490mm510mm
MStack632mm632mm645mm645mm
