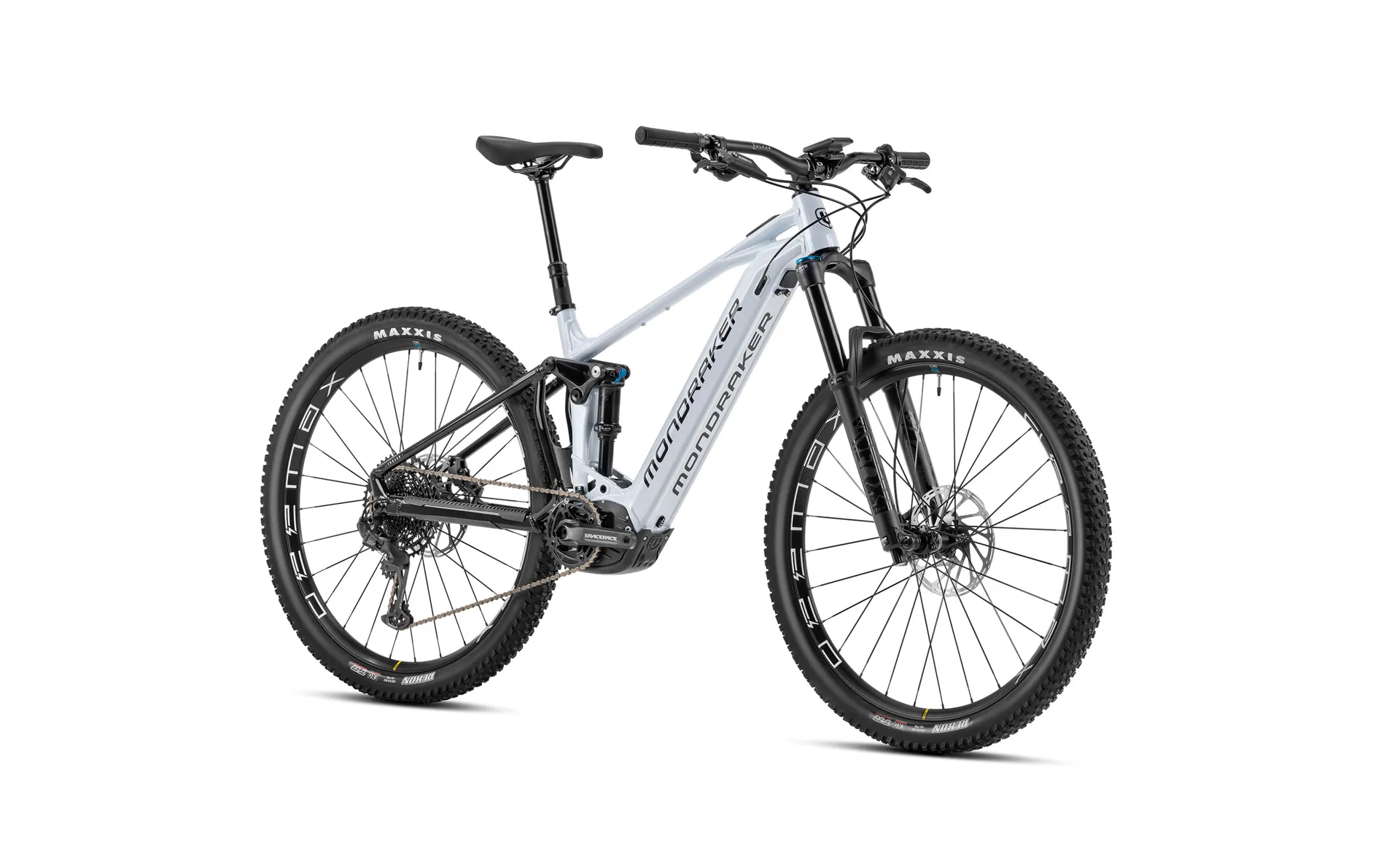

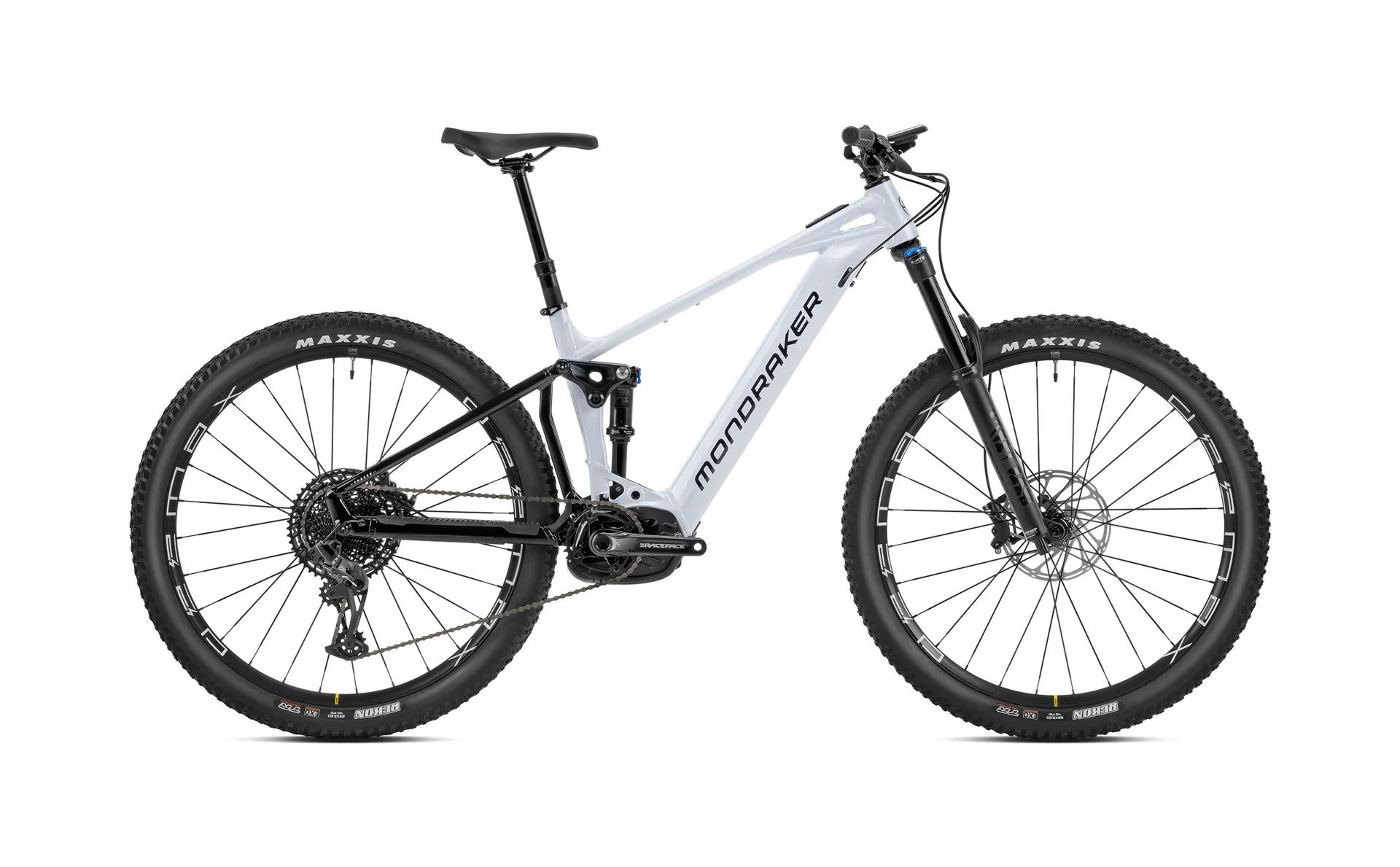

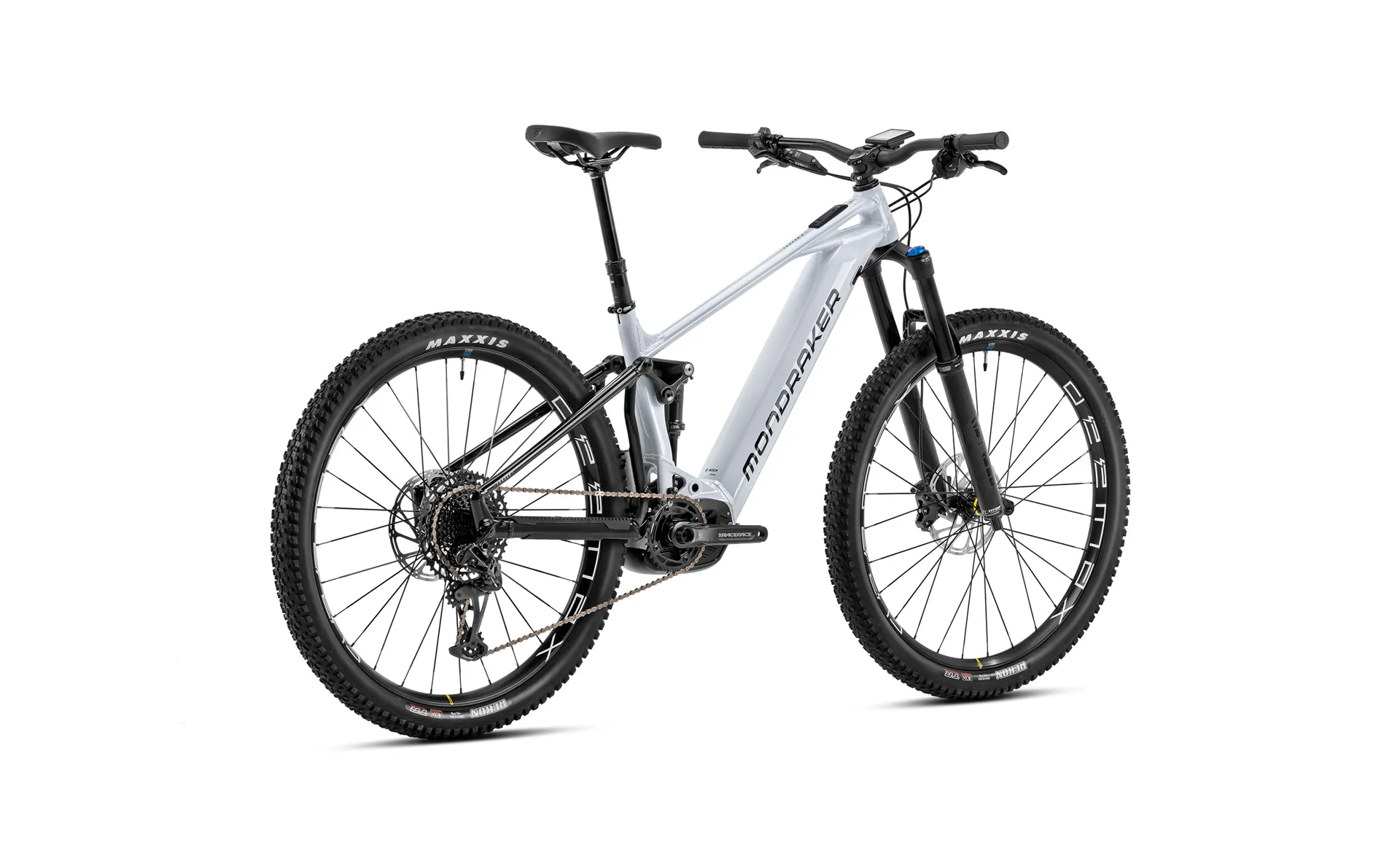

Mondraker Chaser R 2023

Season:2023

Brand:Mondraker

Code:Chaser R

THE CHASER R IS OUR BEST VALUE EBIKE IF YOU’RE LOOKING FOR A COMPETITIVE, EFFICIENT RIDE ROCKING MONDRAKER’S MARKET LEADING TECH

The Chaser R is our best value ebike if you’re looking for a competitive, efficient ride rocking Mondraker’s market leading tech. The frame’s been optimized so that it’s up for anything. Trails and more trails, ascents and descents, technical trails or gnarr, the CHASER R won’t be the one holding you back if you’re thinking of sending it. The ZERO suspension system, FORWARD GEOMETRY and STEALTH ALLOY EVO make it a benchmark, technologically speaking. If we add in to the mix the optimization of the kinematics of the rear suspension you just couldn’t ask for more. For 2023, in addition to the Mini Remote control and integrated System Controller, it features Bosch’s elegant Intuvia 100 display. The CHASER R is a Mondraker thoroughbred at a very reasonable price point.

Technical Information

Frame
Chaser 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers, shock mudguard
Sizes
S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Rear shock
Fox Float DPS Performance, 205x65mm. Settings: Compression 3 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Shock settings
medium compression, medium rebound, air volume spacer 0.4
Fork
Fox 36 29 Float FIT GRIP EVOL Rhythm, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: sweep adjust compression, Low-speed rebound, air preload
Headset
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips
Onoff Twin, 1lock-on, 135mm
Seatpost
Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
Saddle
MDK ebike black
Front brake
Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake
Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever
Sram DB8, tool reach adjust
Rims
Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Spokes
Mavic J-bend double butted, contactless lacing
Front hub
Mavic, Boost 15x110mm, IS 6 bolts
Rear hub
Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts
Front tire
Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
Rear tire
Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
Crankset
Race Face Aeffect ebike, 165mm
Rings
Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Chain
Sram SX Eagle, 12s, Powerlock
Rear derrailleur
Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers
Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click
Casette
Sram PG-1210, 11-50T, 12s
Derailleur hanger
Mondraker M068
Weight
24,7 kg
Display
Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller
Motor
Bosch Performance Line CX (25km/h) Smart System
Battery
Bosch Powertube 750Wh

Sizing Information

FRAME SIZE	XL	L	M	S
A	Seattube length	490mm	450mm	420mm	380mm
B	Toptube length	670mm	650mm	625mm	605mm
C	Bottom bracket drop	-25mm	-25mm	-25mm	-25mm
D	Bottom bracket height	350mm	350mm	350mm	350mm
E	Chainstay length	455mm	455mm	455mm	455mm
F	Seat tube angle	73.5°	73.5°	73.5°	73.5°
G	Effective seattube angle	76°	76°	76°	76°
H	Headtube angle	65.5°	65.5°	65.5°	65.5°
I	Fork Offset	44mm	44mm	44mm	44mm
J	Wheelbase	1285mm	1265mm	1245mm	1225mm
K	Headtube length	130mm	130mm	110mm	110mm
L	Reach	510mm	490mm	470mm	450mm
M	Stack	640mm	640mm	622mm	622mm
