Ohlins

Ohlins TTX Air Specialized Stumpjumper 29

€986.22
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

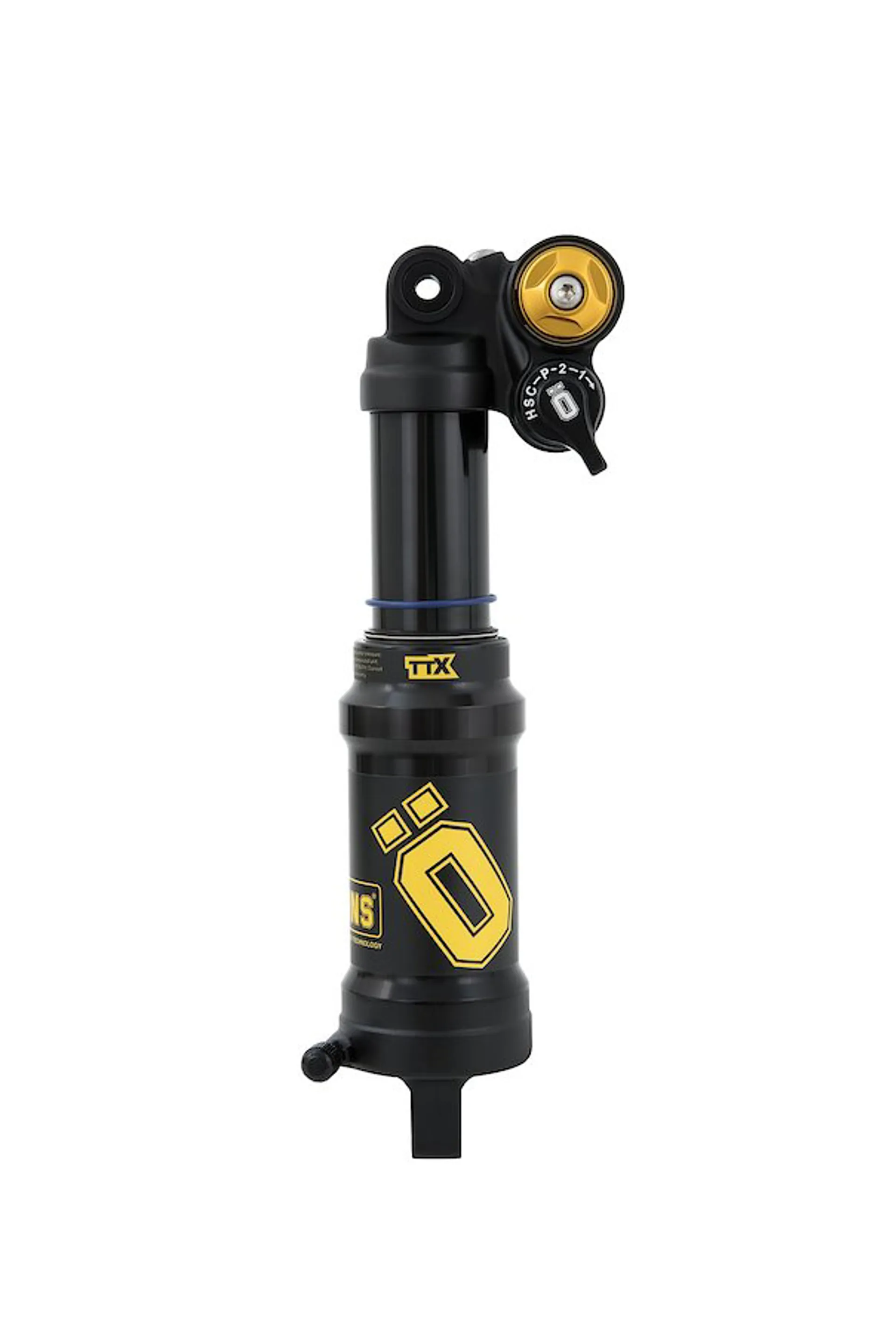

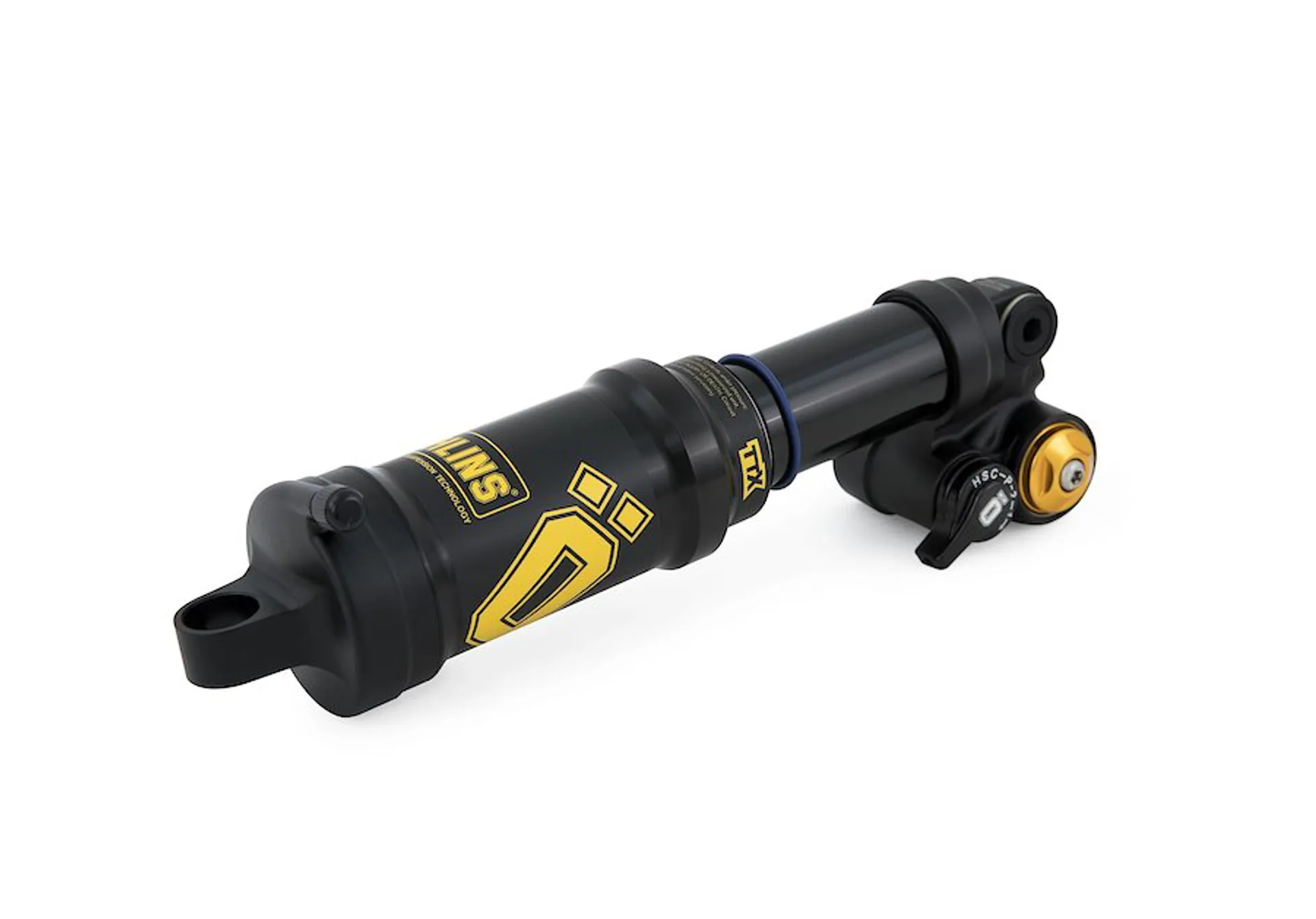

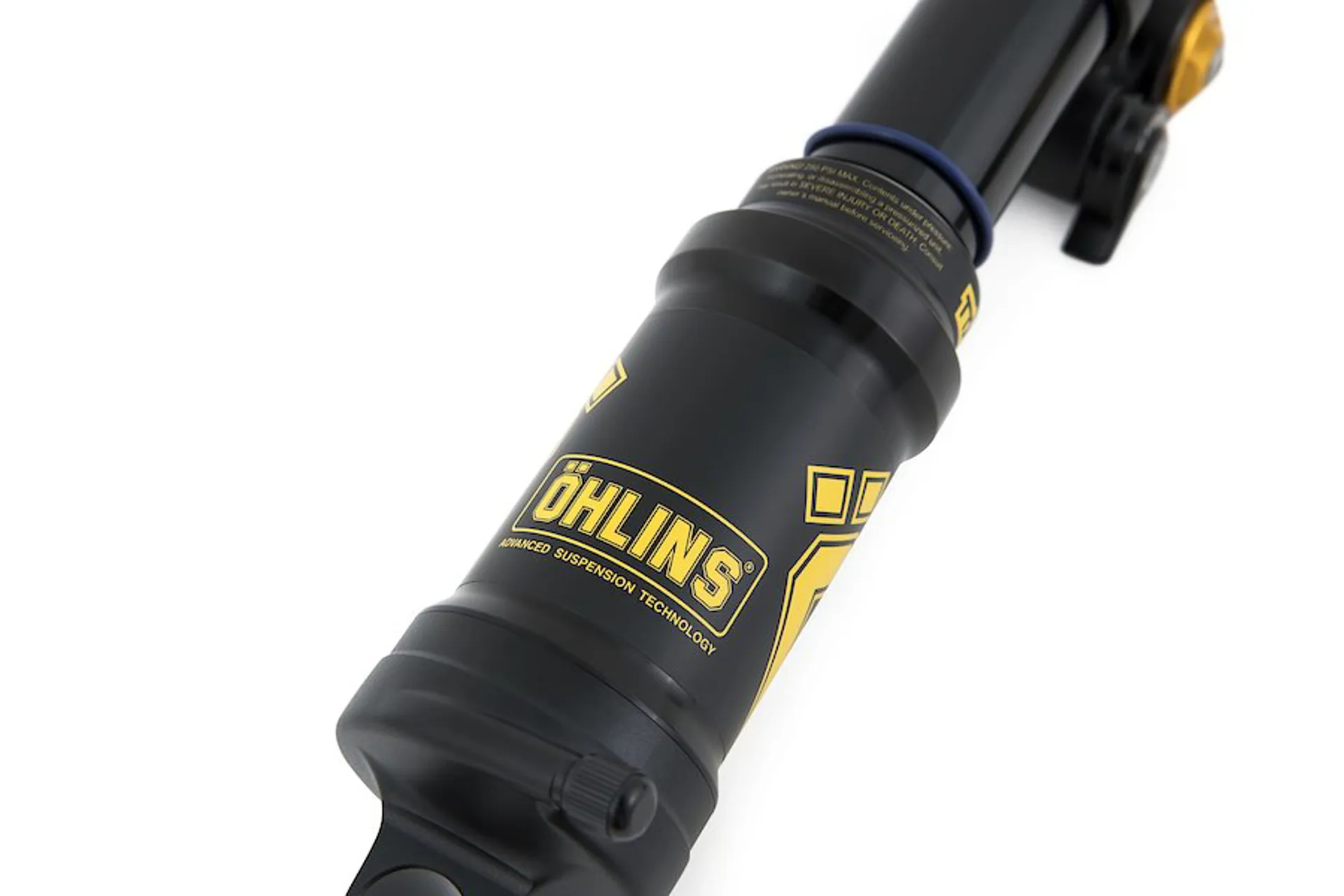

Ohlins TTX Air Specialized Stumpjumper 29

Season:2023

Brand:Ohlins

Code:Stumpjumper 29 ST SBC 204

Born out of the highly successful and well proven TTX 22 M coil shock comes the TTX Air shock absorber. The TTX Air combines the best of both worlds - the TTX 22 M's damping performance and robustness with the light weight and the simple tuning of an air shock.

Features:

  • Twin-tube technology (TTX)
  • Pressurized system with gas reservoir
  • Aluminum, hard anodized
  • Servicable, rebuildable
  • 2 years warranty

Technical Specifications:

  • Weight: ca. 410 g
  • Lenght: 190 mm
  • Stroke: 42,5 mm
  • End-eye diameter: 15 x 12,7 mm

Adjustement:

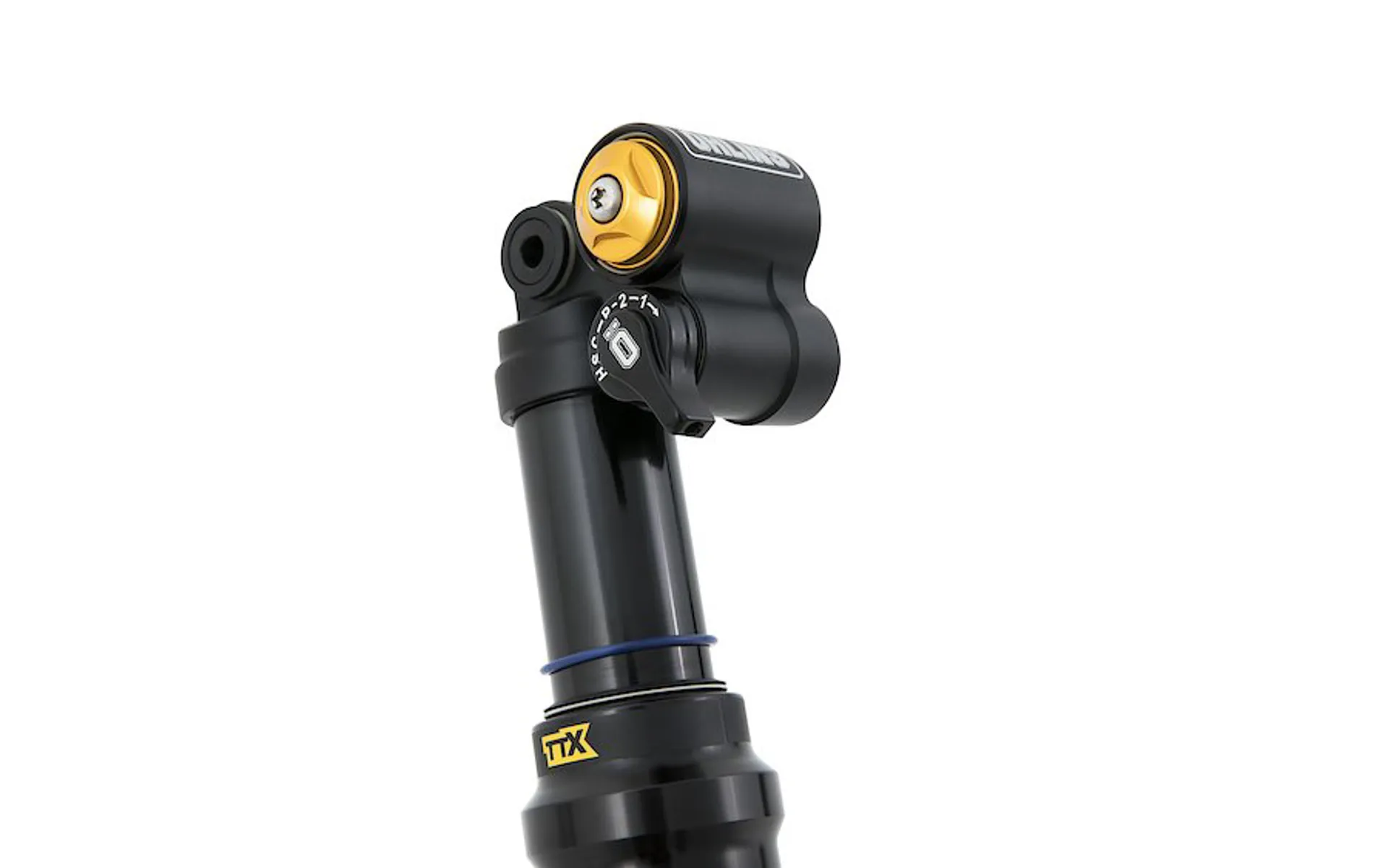

  • 3 click high speed compression damping incl. pedal mode

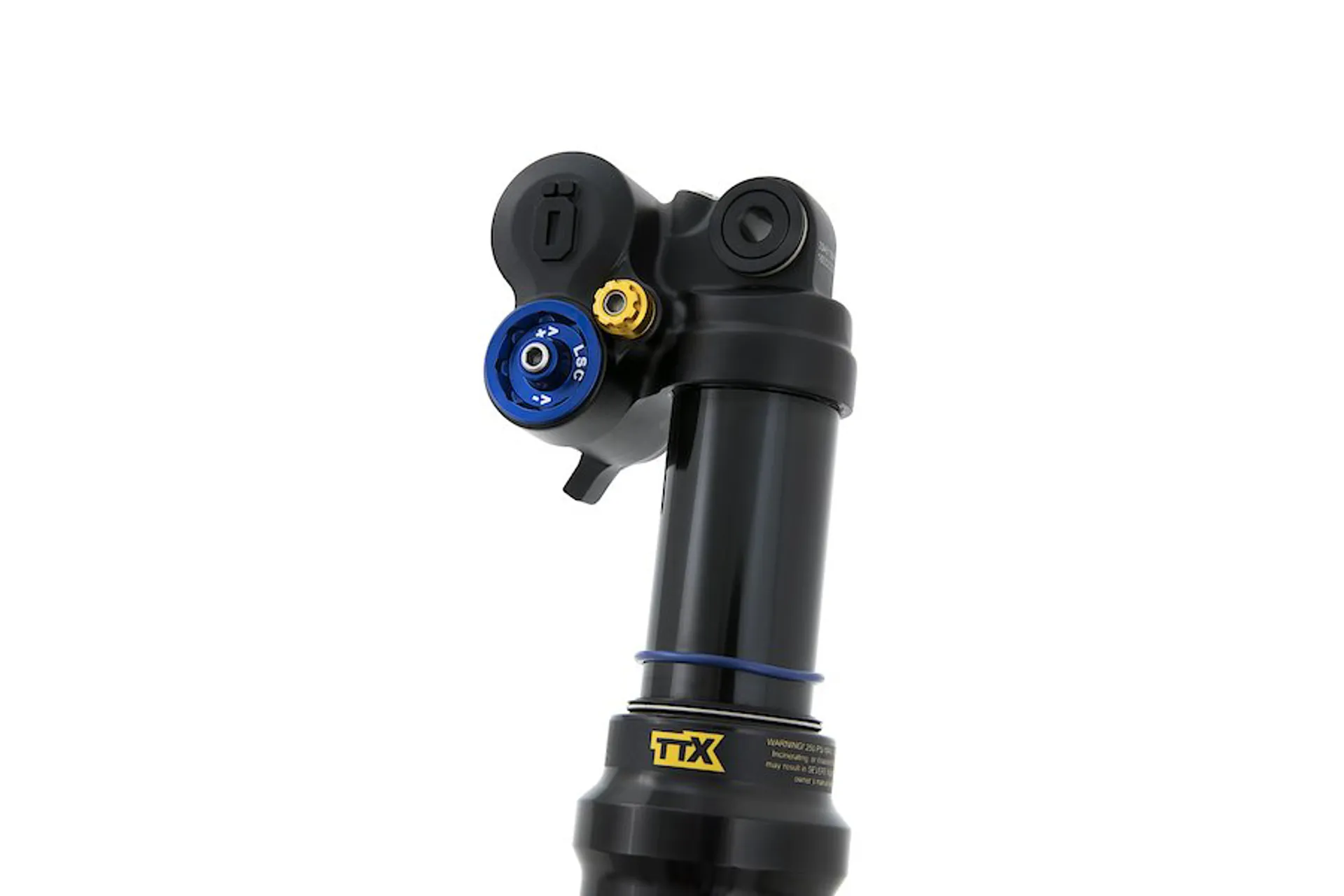

  • 10 click low speed compression damping
  • 12 click low speed rebound damping
  • Spring rate (via air pressure)
  • Spring progression

Purchased Parts Package:

  • 1 shock absorber TTX Air
  • Owners manual
  • Mounting instruction

Mounting Kits:

For the installation of universal shock absorbers to specific bicycle models mounting kits are available. They consist of bushings, spacers and x-rings and need to be ordered separately (see product group mounting kits).

Technical Information

Features:

  • Twin-tube technology (TTX)
  • Pressurized system with gas reservoir
  • Aluminum, hard anodized
  • Servicable, rebuildable
  • 2 years warranty

Technical Specifications:

  • Weight: ca. 410 g
  • Lenght: 190 mm
  • Stroke: 42,5 mm
  • End-eye diameter: 15 x 12,7 mm

Adjustement:

  • 3 click high speed compression damping incl. pedal mode
  • 10 click low speed compression damping
  • 12 click low speed rebound damping
  • Spring rate (via air pressure)
  • Spring progression
