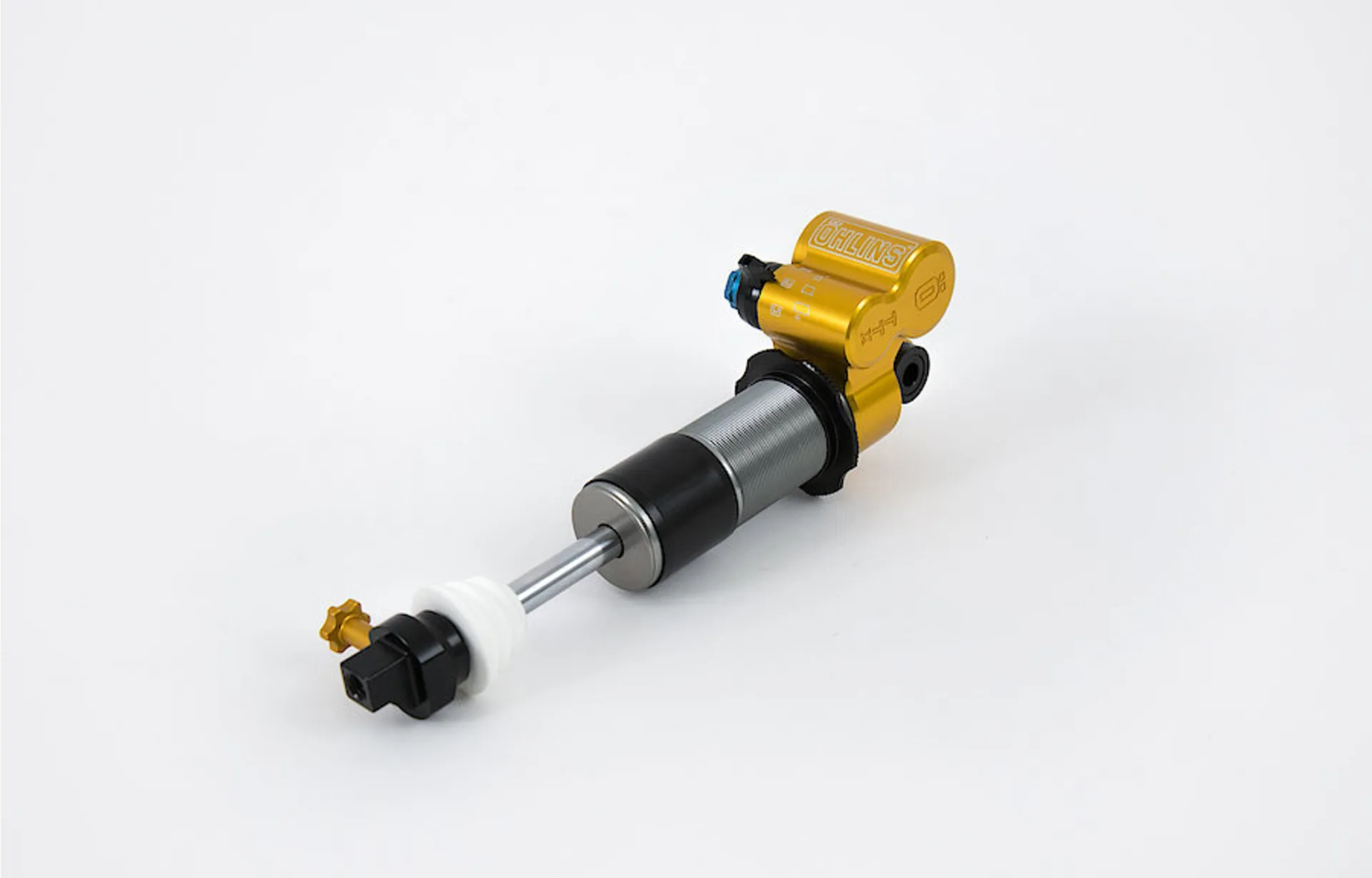

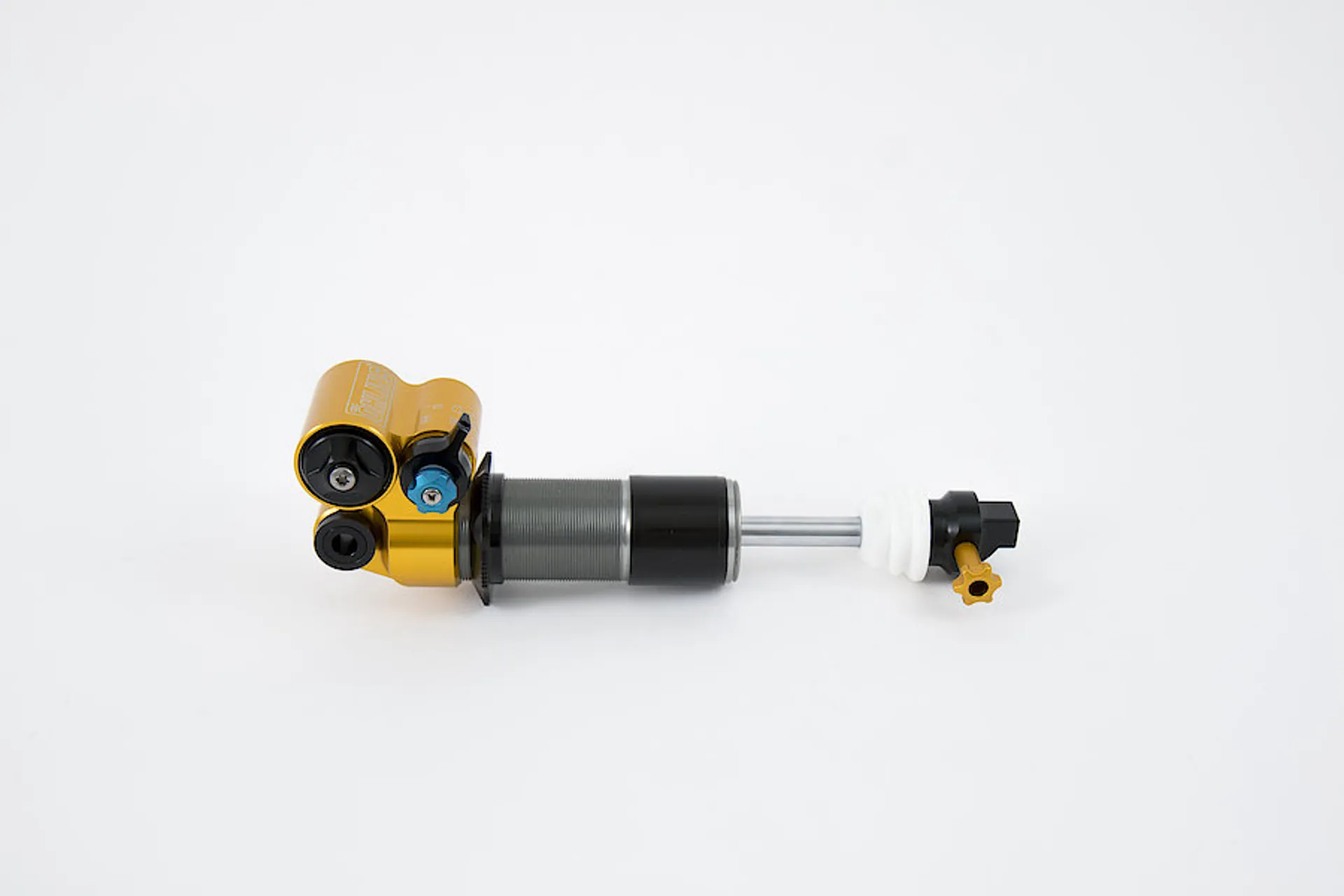

The TTX22M shock absorber is designed to handle the most challenging World Cup Downhill tracks while still providing pedal efficiency for the flat and uphill sections. The twin tube design allows the gas pressure to always backup the low-pressure side of the piston to keep pressure at a controlled level. This ensures consistent damping performance on all types of terrain and improves damping response to give outstanding control of the bike and tire movements.
Low and high speed compression and rebound damping are externally adjustable. Spherical bearings is offered as an option on widths up to 22 mm, reducing friction on the shock during side loads to improve small bump sensitivity.
Available in in metric lengths and strokes as well as Trunnion mount, the TTX22M Custom aftermarket shock absorber is designed to handle the most challenging World Cup Downhill tracks while still providing pedal efficiency for the flat and uphill sections. The twin tube design allows the gas pressure to always backup the low-pressure side of the piston to keep pressure at a controlled level. This ensures consistent damping performance on all types of terrain and improves damping response to give outstanding control of the bike and tire movements.
Low and high speed compression and rebound damping are externally adjustable. Spherical bearings is offered as an option on widths up to 22 mm, reducing friction on the shock during side loads to improve small bump sensitivity. All shocks feature the stability mode. 3rd position on high speed adjuster increase compression damping to reduce suspension movements during less technical climbs.
Technical Specifications:
- Twin-Tube-Technology (TTX)
- Weight between 425 and 460 g (without spring)
- Length 197 mm (7,75 Inch)
- Stroke 47,5 mm (1,87 Inch)
- Wheel size
- Aluminium design, hard anodized
- Fully servicable and rebuildable
- 2 years limited warranty
Adjustment:
- 3 clicks high speed compression damping
- 16 clicks low speed compression damping
- 7 clicks rebound damping
Purchased parts package:
- 1 shock absorber TTX22M
- Model related parts for mounting
- Owners manual
Spring is not included and needs to be ordered seperately.

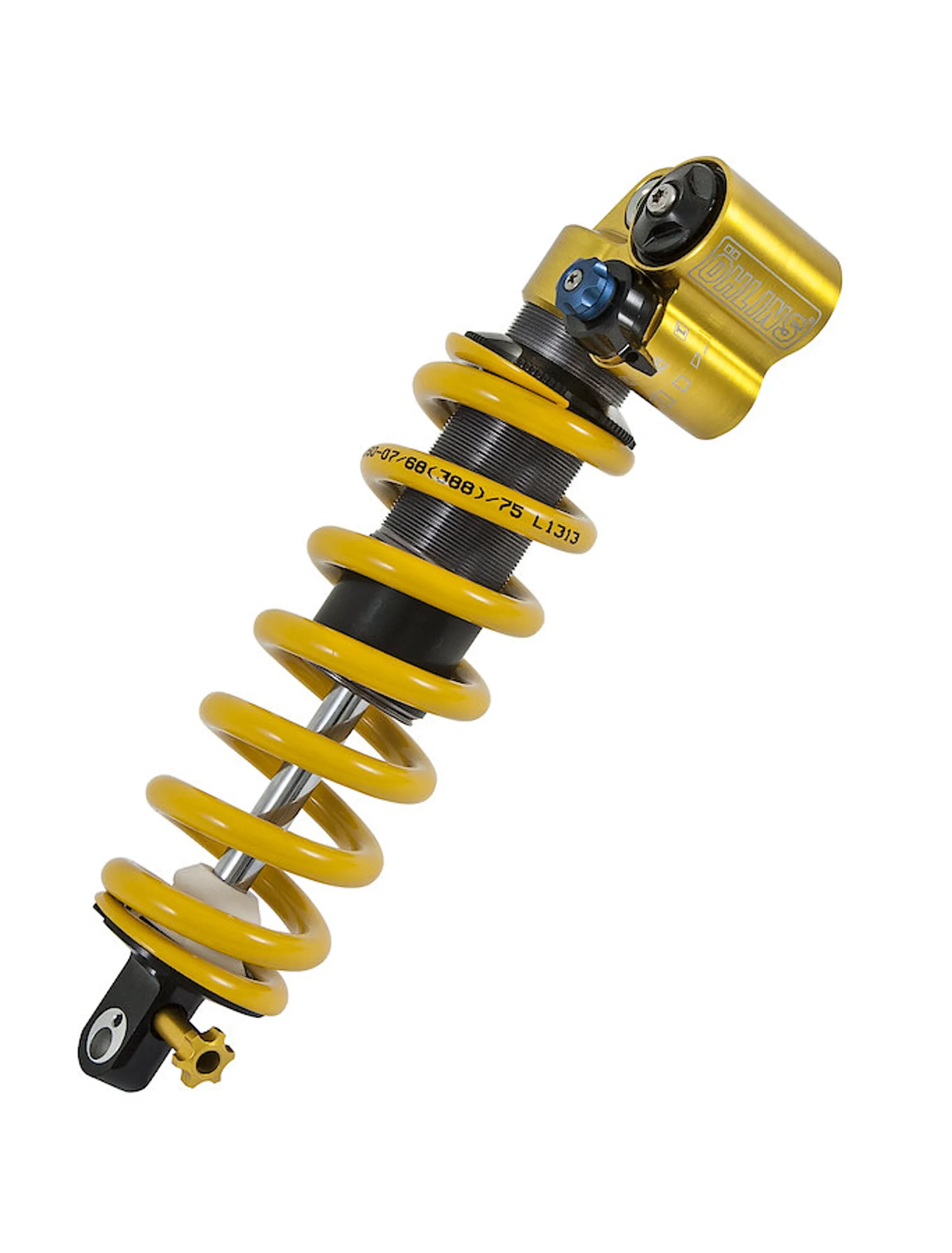

Springs:
This damper is designed to be used with springs 18075-08 bis -17 (see product group springs). Springs are available in steps of 4 N/mm (23 lbs/in) and have a maximum tolerance of 1,5%. The weight of a spring is between 230 and 360 g.Spare part 18029-03 is need for all spring rates -15 and higher
