IBIS DV9 MUDDY WATERS
IBIS DV9 MUDDY WATERS
Ibis

IBIS DV9 MUDDY WATERS

€1,499.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

IBIS DV9 MUDDY WATERS

Season:2023

Brand:Ibis

Code:DV9FRAMEMUDDYWATERS

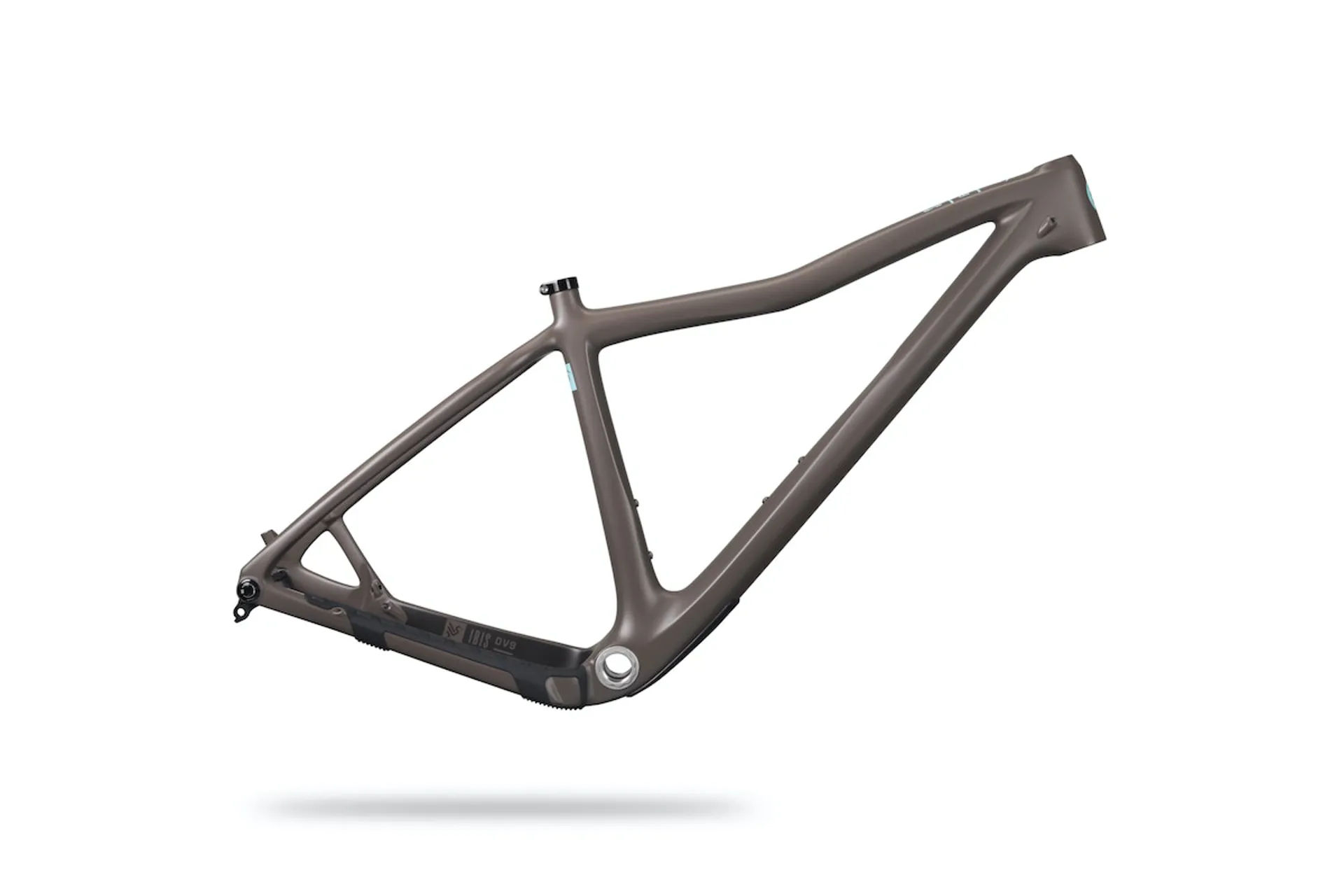

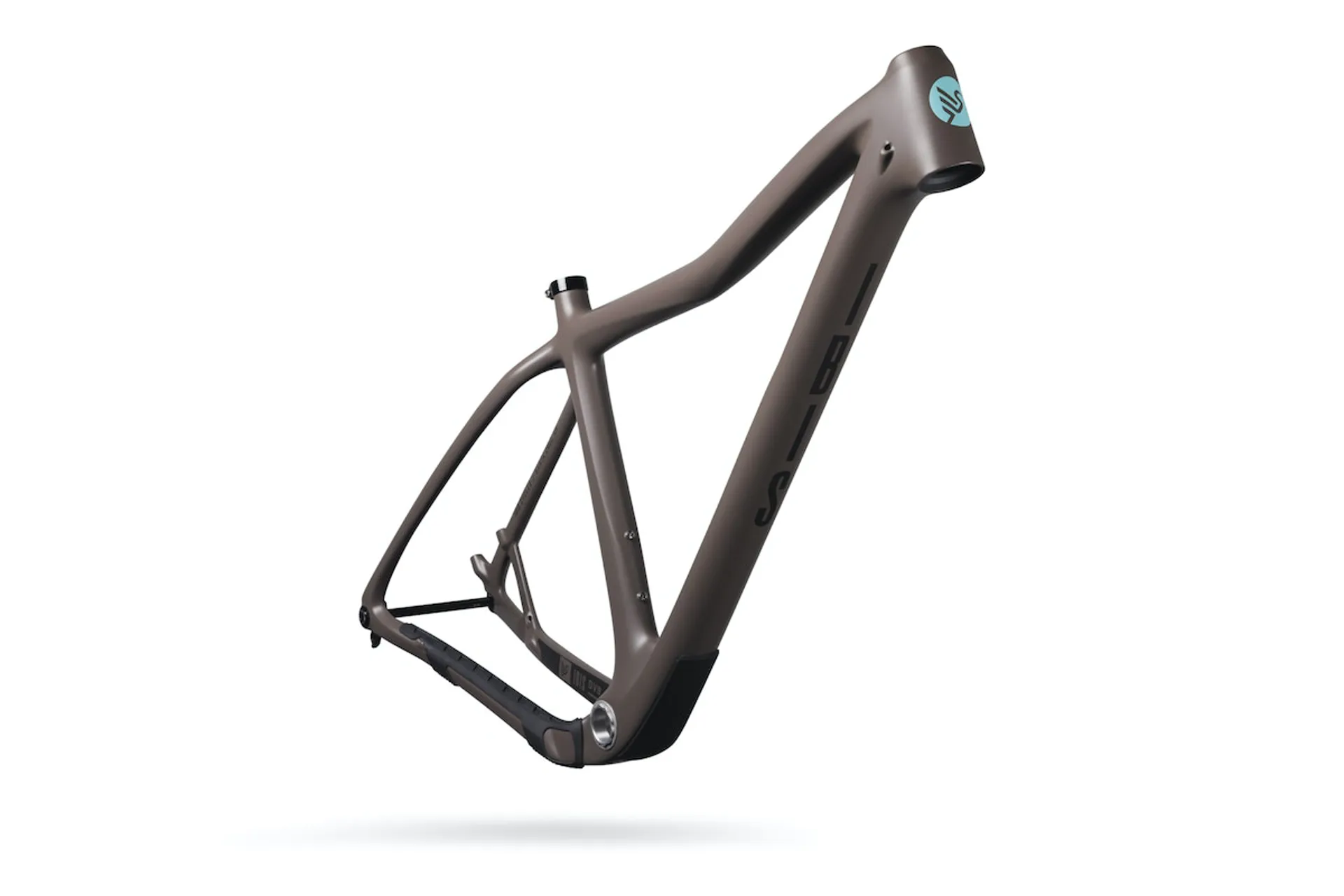

The DV9 is back! A do-it-all carbon fiber hardtail designed to take you from the trailhead to the starting line, with a session at the pump track in between. Lighter weight, with up to date geometry, and engineered to the same exacting standards as the rest of our line, it packs a ton of performance in a more accessible price.

GEOMETRY

Inspired by the World Cup Race Win­ning ExieUSA, theDV9fea­tures arow­dy-but-not-too-row­dy66.5° head angle and ultra-play­ful425mm chain­stays. Alow stan­dover improves fit for the inseam chal­lenged rid­er, while size spe­cif­ic seat tube angles gives rid­ers of all heights an effi­cient yet enjoy­able rid­ing position.

TIRE CLEARANCE

Whether you pre­fer the cushy and con­fi­dent ride that2.6” tires deliv­er or the blaz­ing speed of weight-con­scious2.25” rub­ber, we’ve got you covered.

INTERNAL CABLE ROUTING

Inter­nal cable rout­ing used to be apain in the ass but our inter­nal tubes make rout­ing easy. Just pop the hous­ing through and it comes out the oth­er end, no need for swear words or apickset.

FRAME PROTECTION

Our thick rub­ber down­tube and chain­stay pro­tec­tion help damp­en noise and pro­tect the frame. We’ve also includ­ed asim­ple-yet-ele­gant adjustable top guide that allows you to drop the ham­mer, not yourchain.

2X BOTTLE CLEARANCE

TheDV9has clear­ance for two water bot­tles inside the front tri­an­gle of every size frame. Even thesmall.

LIFETIME WARRANTY

If it’s our fault, we’ll fix it. Sim­ple asthat.

Technical Information
VersionV2
Model VersionDV9 V2
Frame MaterialCarbon Fiber
Wheel Size29" (up to 2.6" tires)
Front Travel120mm (compatible with 100mm–140mm)
Axle Width148mm rear / 110mm front
Seatpost Diameter31.6mm
Rear Brake160mm Post mount / 203mm max
Chainstay Length425mm
BB73mm English threaded
Chainline55mm chainline
Chainring ClearanceUp to 34T (round)
Derailleur HangerUniversal Derailleur Hanger (UDH)
Tapered HeadtubeIS 41/28.6 upper, IS 52/40 lower
ColorsMuddy Waters, Purple Crush
SizesS, M, L, XL
Frame WarrantyLifetime
Sizing Information


NOMINAL SIZESMALLMEDIUMLARGEX-LARGE
Seat Tube LengthA356406457508
Top Tube LengthB580608640675
Head Tube LengthC8595110135
Chainstay LengthD425425425425
Seat Tube AngleE74°74.5°75°76°
Saddle Height for Seat Tube AngleF650700750820
Head Tube AngleG66.5°66.5°66.5°66.5°
WheelbaseH1100114511861237
StackI615622635658
ReachJ404435470511
BB DropK65656565
BB Height (with Rekon 2.6" Tires)308308308308
StandoverL693714762776
Trail114114114114
